Belden 9451P 008U1000 22AWG STP Line Level Audio Cable, 1000' Reel Box, Gray
9451P 008U1000
|7B-9451100GY
Shop All Belden
Belden 9451P 008U1000 22AWG STP Line Level Audio Cable, 1000' Reel Box, Gray
9451P 008U1000 | 7B-9451100GY
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

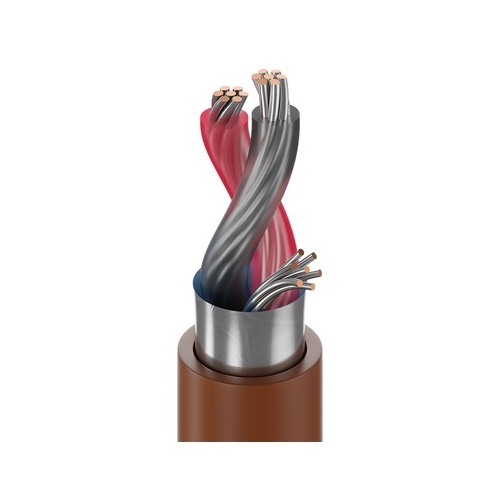

Line Level Audio Cable, 1 Pair 22 AWG (7 x 30) Tinned Copper, FEP insulation, Overall Beldfoil Shield, Flamarrest Jacket, CMP.
Main Features
- 1 pair 22 AWG (7 x 30) tinned copper conductors
- FEP insulation
- Overall Beldfoil shield
- Flamarrest Jacket with CMP Rating
- 1000' Reel
- Line level audio cable
General Information
Name: Belden 9451P 008U1000 22AWG STP Line Level Audio Cable, 1000' Reel Box, Gray
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825253006
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-9451100GY Brand Name Belden Country of Origin US Manufacturer Part Number 9451P 008U1000 Packaged Quantity 305
American Wire Gauge 22AWG Cable Rating Plenum Conductor Count 2 Conductor Material Tinned Copper Fiber Category OS2 Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Color Gray Insulation Material FEP Jacket Material PVC
Length 1000.00'
Limited Warranty 10-Year
Indoor/Outdoor Indoor
