Digital Watchdog DW-ILWLIPM NightWatch White Light Illuminator, 374' (114m) Range

DW-ILWLIPM|6K-ILWLIPM
Shop all Digital Watchdog

Digital Watchdog DW-ILWLIPM NightWatch White Light Illuminator, 374' (114m) Range

DW-ILWLIPM|6K-ILWLIPM

Sign In for Dealer Pricing

Become an ADI Customer
Image of 6K-ILWLIPM
Digital Watchdog

Digital Watchdog DW-ILWLIPM NightWatch White Light Illuminator, 374' (114m) Range

DW-ILWLIPM | 6K-ILWLIPM

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

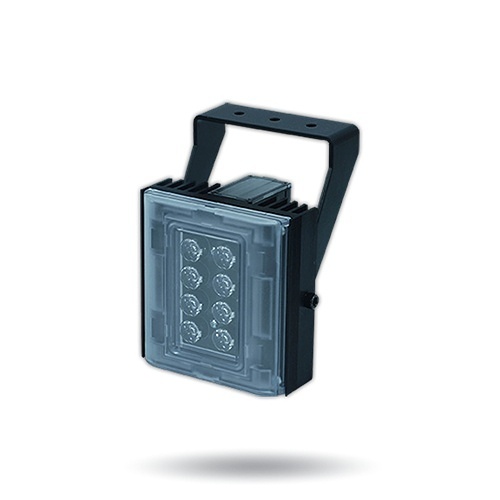

The SiteWatch DW-ILWLIPM is an IP-enabled white light LED outdoor illuminator. The illuminator incorporates the latest surface mount Dual-Core LEDs, combined with enhanced optical output and outstanding reliability to provide users with smart lighting solutions for a wide range of applications. The DW-ILWLIPM illuminator includes an interchangeable lens pack to deliver a variety of angles out of the box providing users the flexibility to create different elliptical beam profiles. Using PoE and IP communication, the SiteWatch illuminators support direct integration with DW Spectrum IPVMS.

Main Features

  • Active Deterrence Lighting Floods areas with bright white light upon motion detection, deterring intruders and enhancing real-time security response.
  • Wide Coverage Range Delivers up to 374 feet (114m) of visible illumination, ideal for medium-range perimeter protection and outdoor surveillance.
  • Customizable Beam Angles Includes interchangeable lens packs to create elliptical beam profiles from 10° to 95°, aligning perfectly with camera fields of view.
  • DW Spectrum Integration Directly integrates with DW Spectrum IPVMS for centralized control, event-triggered activation, and seamless system management.
  • Built-In Web Interface Configure illumination settings remotely with an intuitive web interface—no extra software required.
  • High-Efficiency Dual-Core™ LEDs Equipped with advanced surface-mount Dual-Core™ LEDs for powerful output and long-lasting performance.
  • Environmental Durability IP66-rated for dust and water resistance and IK09-rated for impact protection, built to withstand harsh outdoor conditions.
  • Adjustable Illumination & Photocell Fine-tune light levels (10%–100%) and photocell sensitivity (20–70 lux) to suit specific site requirements.

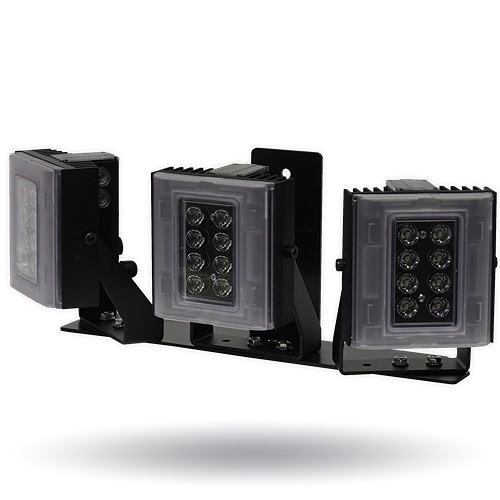

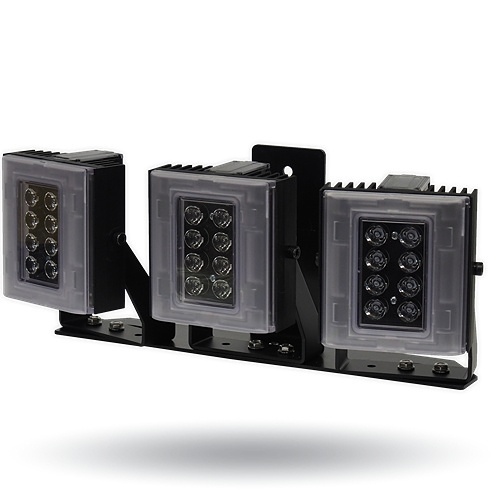

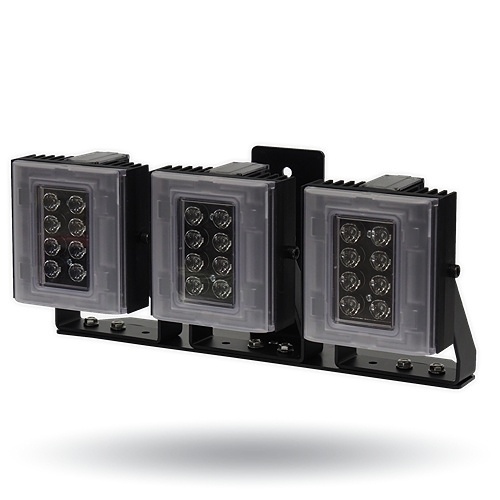

  • Flexible Mounting Options Supports modular mounting brackets for single, dual, or triple illuminator setups, adapting to diverse installation needs.
  • NDAA/TAA Compliant Meets federal procurement standards, making it suitable for government, military, and enterprise-level installations.

    • General Information

    Name:Digital Watchdog DW-ILWLIPM NightWatch White Light Illuminator, 374' (114m) Range
    Category:Digital Watchdog, Video Surveillance, Video Accessories, Illuminators, ADI Pro Rewards
    UPC Code:812226031306
    Country of Origin:United Kingdom. Country of origin is subject to change.
