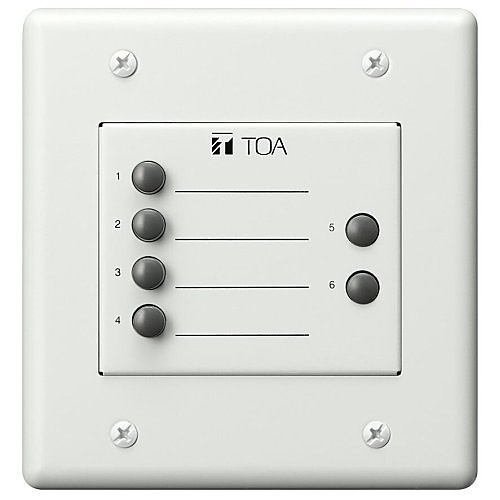

TOA ZM-9003 Remote Panel with 4-Interlocking Selection Buttons and 2-Momentary Buttons
ZM-9003
|65-ZM9003
Shop All TOA
TOA ZM-9003 Remote Panel with 4-Interlocking Selection Buttons and 2-Momentary Buttons
ZM-9003 | 65-ZM9003
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The ZM-9003 is a remote control switch panel with 4 interlocking selection switches and 2 momentary switches. Connecting it to the 9000 Series amplifier's control input terminal permits various controls such as BGM source selection and the sound volume adjustment. It can be mounted in an American standard 2-gang electrical box in a wall.
Main Features
- Removable terminal block
- Maximum 2 remote panels per chassis
- Max. loop resistance, 250 ohms per line
General Information
Name: TOA ZM-9003 Remote Panel with 4-Interlocking Selection Buttons and 2-Momentary Buttons
Category: TOA, Pro AV, Commercial Audio, Pro Audio Controllers
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 65-ZM9003 Brand Name TOA Country of Origin CN Manufacturer TOA Corporation Manufacturer Part Number ZM-9003 Product Model ZM-9003 Product Name ZM-9003 Audio Control Device Product Type Audio Control Device
Color White Depth 2.10" Form Factor Wall Mount Height 5.00" Material Steel Weight 13.23oz Width 4.70"
Mount Type Wall Mount
Limited Warranty 5-Year
Additional Information - Four interlocking selection buttons and two momentary buttons
- Line Resistance: 250 ? or less (per line)
- Operating Temperature: -10 to +40°C
- Certification: EMC directive 2004/108/EC
Compatibility - TOA 9000M2 Series Digital Matrix Mixer/Amplifiers
- TOA C001T Input/Output Control Module
Package Contents - ZM-9003 Audio Control Device
- 1 x Removable terminal Plug (7 pins)
- 4 x Machine screw (for panel mounting) No.6-32UNC x 6
- 4 x Machine screw (for box mounting) No.6-32UNC x 30
- and more below
