Product Overview
For Applications Requiring 600 Ohm Line Matching. Transformer isolation (600 Ohms) minimizes ground loop problems when connecting remote equipment (greater than 15'). Signal at input terminals activates both mute bus #1 and mute bus #2 buses by default (cut diode(s) to disconnect individual mute bus). Connector, removable terminal block.
Main Features
- For applications requiring 600 Ohm line matching
- Minimizes ground loop problems when connecting remote equipment (greater than 15')
- Signal at input terminals activates both mute bus #1 and mute bus # 2 buses by default
- Removable terminal block
General Information

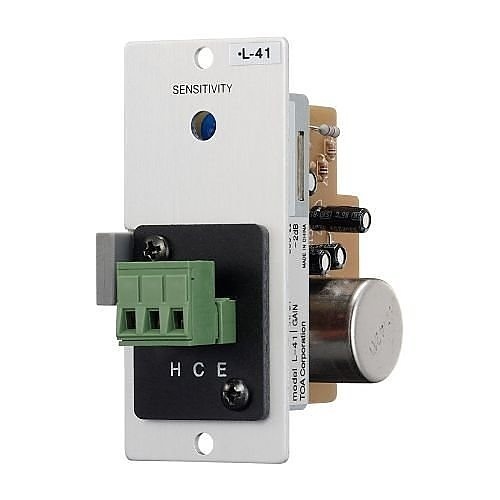

Name: TOA L-41S TD00 Line Matching Input with Mute-Send, 600 ohms
Category: TOA, Pro AV, Commercial Audio, Pro Accessories & Mounts
UPC Code:
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number 65-L41STD00 Brand Name TOA Country of Origin TW Manufacturer TOA Manufacturer Part Number L-41S TD00 Product Model L-41S TD00 Product Name Line Matching Input with Mute-Send Product Type Impedance Matching Transformer
TAA Compliant No
Color White Depth 3.46" Height 3.07" Weight 0.19lb Width 1.38"
