Image of 5E-03357001
Acheter 2N

2N 03357-001 IP Force 2.0 RFID Card Reader, 125 kHz, 13.56 MHz and OSDP

03357-001|5E-03357001
Acheter 2N

2N 03357-001 IP Force 2.0 RFID Card Reader, 125 kHz, 13.56 MHz and OSDP

03357-001|5E-03357001

Se connecter prix revendeur

Devenir client ADI
2N

2N 03357-001 IP Force 2.0 RFID Card Reader, 125 kHz, 13.56 MHz and OSDP

03357-001 | 5E-03357001

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

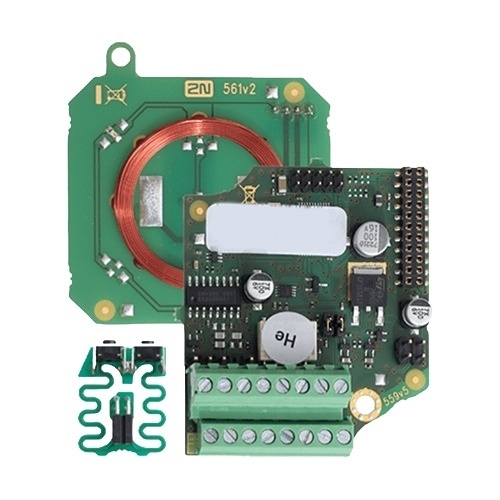

Internal RFID card reader for installation in 2N IP Force 2.0 intercoms. Allows the use of both 125 kHz and 13.56 MHz frequency cards. Two additional relays, two logical inputs and an OSDP interface are available. OSDP protocol provides higher security than the Wiegand protocol and encrypts the transmitted data. It is compatible with the 2N IP Force 2.0 two-button and pictogram models (9151301CRP, 9151302CR). It also includes a tamper switch to signal when the front panel is opened.

Principales caractéristiques

  • Active switch output: 9.8 to 13.8VDC according to power supply (PoE : 11,6V; adapter: power supply voltage minus 0,4V), up to 400 mA
  • Inputs: 2 inputs: active (requires external voltage) or passive (requires external contact only)
  • Signaling output: Internal red LED under the intercom front panel
  • Power supply: 12VDC ± 15% / 350 mA for external RFID card reader
  • 125 kHZ: EM4x02, NXP HiTag2
  • 13.56 MHz - ISO14443A: MIFARE Classic, MIFARE Plus, MIFARE Mini, MIFARE Ultralight, MIFARE DESFire
  • Working temperature: -30 °C – 55°C

    • Renseignements généraux

    Nom:2N 03357-001 IP Force 2.0 RFID Card Reader, 125 kHz, 13.56 MHz and OSDP
    Category:2N, Communications, Intercoms & Telephone Entry, Intercom Door Stations
    UPC Code:8595159524740
    Country of Origin:Czech Republic. Country of origin is subject to change.
