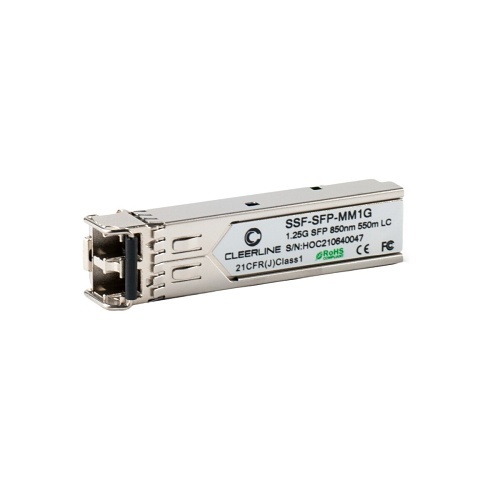

Cleerline SSF-SFP-MM1G 1.25G SFP Transceiver MM 1000Base-SX, 850nm, 550m Max Reach, with DDM
SSF-SFP-MM1G | 4E-SFPMM1G
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Cleerline SSF-SFP-MM1G transceiver is a high-performance, cost-effective module supporting data-rates of 1.25Gbps and 550m transmission distance with multimode fiber. This SFP uses the 1000Base-SX standard, popular for short range connections. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers follow the industry standards of the SFP Multi-Source Agreement (MSA) and SFF-8472, making them directly interchangeable with any networking device following industry standards.
Main Features
General Information
Name:Cleerline SSF-SFP-MM1G 1.25G SFP Transceiver MM 1000Base-SX, 850nm, 550m Max Reach, with DDM
Category:Cleerline, Data Comm & Networking, Network Adapters, SFP Modules
UPC Code:672975372507
Country of Origin:China. Country of origin is subject to change.
Specifications
ADI Part Number 4E-SFPMM1G Brand Name Cleerline Manufacturer Part Number SSF-SFP-MM1G Product Type SFP Transceiver
Fiber Optic Mode Multimode
Data Transfer Rate 1.25Gbps
