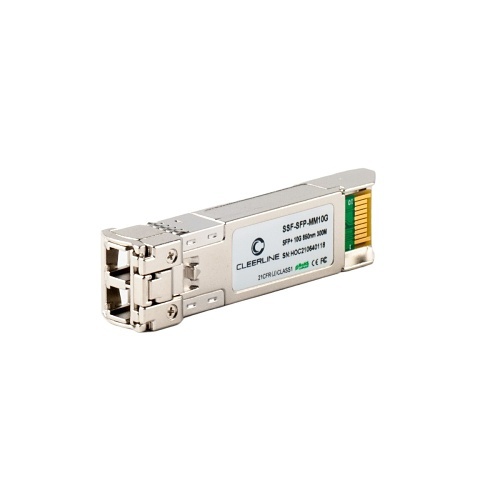

Image of 4E-SFPMM10G
Shop all Cleerline

Cleerline SSF-SFP-MM10G 10G SFP+ Transceiver MM 10GBase-SR, 850nm, 300m Max Reach

SSF-SFP-MM10G|4E-SFPMM10G
Shop all Cleerline

Cleerline SSF-SFP-MM10G 10G SFP+ Transceiver MM 10GBase-SR, 850nm, 300m Max Reach

SSF-SFP-MM10G|4E-SFPMM10G

Sign In for Dealer Pricing

Become an ADI Customer
Image of 4E-SFPMM10G
Cleerline

Cleerline SSF-SFP-MM10G 10G SFP+ Transceiver MM 10GBase-SR, 850nm, 300m Max Reach

SSF-SFP-MM10G | 4E-SFPMM10G

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Cleerline SSF-SFP-MM10G is a 10G SFP+ transceiver designed for multimode fiber (MMF) applications, offering high-speed data transmission at 10 Gigabit speeds. This module supports a maximum reach of 300 meters using 50/125 µm multimode optical fiber and operates at an 850nm wavelength. The SSF-SFP-MM10G is compliant with the 10GBASE-SR standard and is ideal for short-range data communication. The SSF-SFP-MM10G features a low-power, hot-pluggable design with an 850nm VCSEL transmitter and a PIN photodetector, ensuring efficient data transmission. It offers a maximum link length of 300 meters on 2000 MHz/km MMF and supports operating temperatures from 0 to 70°C. The module's electrical interface is compliant with SFI specifications, and it includes advanced firmware for system encryption. Its all-metal housing provides superior EMI performance, making it a cost-effective solution for high-density port applications. This transceiver is suitable for various applications, including 10GBASE-SR at 10.3125Gbps, 10GBASE-SW at 9.953Gbps, and other optical links. It is designed for use in data centers, enterprise networks, and high-speed storage area networks (SANs), ensuring reliable and efficient data communication. The SSF-SFP-MM10G's compliance with IEEE 802.3ae and MSA SFF-8431 standards ensures compatibility with a wide range of networking equipment, making it an ideal choice for upgrading and expanding network infrastructure.

Main Features

  • This SFP accepts 2 LC connectors.
  • Optical interface compliant to IEEE 802.3ae 10GBASE-SR
  • Compliance: MSA SFF-8431, RoHS
  • Hot Pluggable
  • 850nm VCSEL transmitter, PIN photo-detector
  • Maximum link length of 300m on 2000MHz/km MMF
  • Operating case temperature: 0 to 70°C
  • Low power consumption
  • All-metal housing for superior EMI performance
  • Advanced firmware allows customer system encryption information to be stored in transceiver

    • General Information

    Name:Cleerline SSF-SFP-MM10G 10G SFP+ Transceiver MM 10GBase-SR, 850nm, 300m Max Reach
    Category:Cleerline, Data Comm & Networking, Network Adapters, SFP Modules
    UPC Code:672975372545
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
