Image of 4E-DH9SMOS2P
Shop all Cleerline

Cleerline DH9125SMOS2P Indoor/Outdoor Fiber Cable, 9/125 µm, G657 A2/B2, SSF-S + BSF, 1000', Yellow

DH9125SMOS2P|4E-DH9SMOS2P
Shop all Cleerline

Cleerline DH9125SMOS2P Indoor/Outdoor Fiber Cable, 9/125 µm, G657 A2/B2, SSF-S + BSF, 1000', Yellow

DH9125SMOS2P|4E-DH9SMOS2P

Sign In for Dealer Pricing

Become an ADI Customer
Image of 4E-DH9SMOS2P
Cleerline

Cleerline DH9125SMOS2P Indoor/Outdoor Fiber Cable, 9/125 µm, G657 A2/B2, SSF-S + BSF, 1000', Yellow

DH9125SMOS2P | 4E-DH9SMOS2P

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

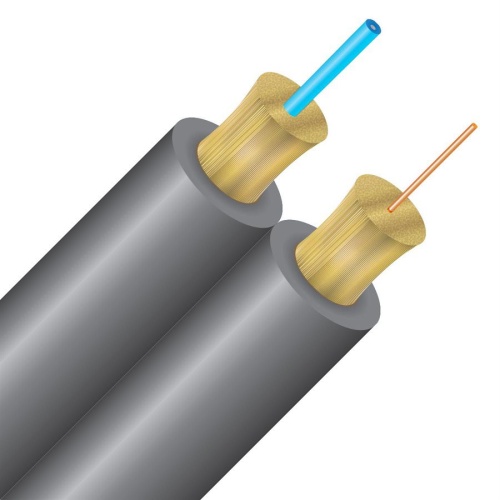

The Cleerline SSF Hybrid Demarc cable features a duplex design with one strand of SSF cable and one strand of BSF BendSafe traditional fiber in a zipcord style, encased in a 3 mm plenum-rated PVC jacket with a gray color. It supports 9/125 single mode OS2 fiber types with fiber sizes of 900 um and 250 um. The BSF fiber includes a 900 um buffer coating and is bend-insensitive, requiring traditional termination and handling, while the SSF fiber has a polymer coating. This cable is suitable for service demarcation and installations requiring both mechanical splice and fusion splice terminations. It is compatible with common connector systems for 9/125 single mode fibers, and BSF fibers allow fusion splicing without removing the SSF polymer coating. The cable is constructed with color-coded fibers (BSF in blue; SSF in orange) and designed for tensile loads of 500 N long term and 1000 N during installation, with a crush resistance of 100 kgf/mm. Temperature operating range is -20 to 75°C. Certified ETL Listed Type OFNP, CSA FT6, IECA S-104-696, and RoHS Compliant Directive 2011/65/EU. Explore the advanced dual-fiber solution ideal for service providers and installers seeking reliable performance and flexible handling in a plenum-rated cable format.

Main Features

  • Hybrid cable combining SSF and BSF fibers in zipcord style
  • Overall 3 mm plenum-rated jacket for safe installation
  • Compatible with common connectors for 9/125 single mode fibers
  • BSF fiber enables fusion splicing without removing SSF polymer coating
  • Color-coded fibers: BSF is blue, SSF is orange for easy identification
  • Duplex cable with 2 fibers: 900 um and 250 um size
  • Plenum-rated PVC jacket, gray color, suitable for air-handling spaces
  • High tensile load capacity: 500 N long term, 1000 N during installation
  • Crush resistance of 100 kgf/mm ensures durability
  • Temperature rating from -20 to 75°C for varied environments

    • General Information

    Name:Cleerline DH9125SMOS2P Indoor/Outdoor Fiber Cable, 9/125 µm, G657 A2/B2, SSF-S + BSF, 1000', Yellow
    Category:Cleerline, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
    UPC Code:672975129583
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
