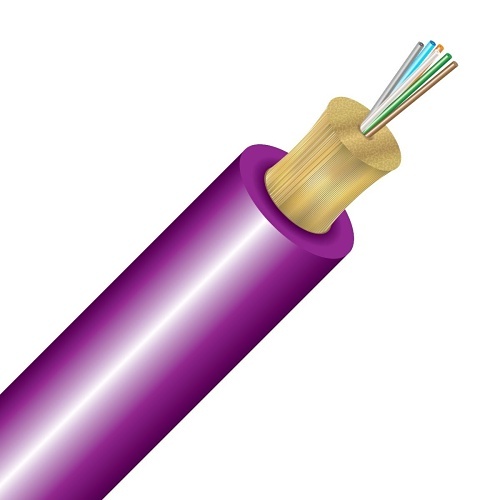

Image of 4E-6D55MOM4P
Acheter Cleerline

Cleerline 6D50125MOM4P SSF Multimode Fiber Cable, 6 Strand, OM4, Plenum Indoor/Outdoor, 50/125, Spool, 1000'

6D50125MOM4P|4E-6D55MOM4P
Acheter Cleerline

Cleerline 6D50125MOM4P SSF Multimode Fiber Cable, 6 Strand, OM4, Plenum Indoor/Outdoor, 50/125, Spool, 1000'

6D50125MOM4P|4E-6D55MOM4P

Se connecter prix revendeur

Devenir client ADI
Cleerline

Cleerline 6D50125MOM4P SSF Multimode Fiber Cable, 6 Strand, OM4, Plenum Indoor/Outdoor, 50/125, Spool, 1000'

6D50125MOM4P | 4E-6D55MOM4P

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

Cleerline SSF advanced optical glass fibers offer superior durability and ease of termination compared to conventional fibers. Designed for high mechanical strength and exceptional bend longevity, these multimode OM4 distribution cables feature an integral polymeric coating that protects the glass fiber at all times, eliminating stripping and enhancing bend and tensile strength. The 3 mm diameter cable contains 6 fibers with a 250 µm soft peel coating and a violet PVC jacket, accommodating a bend radius of 3 mm. Rated for a tensile load of 500 N long term and 1000 N during installation, with 100 kgf/mm crush resistance, and operating temperatures from -20 to 75°C, these cables are suitable for inter-building or intra-building voice and data communication, installed in ducts or underground conduit. They are UL listed, RoHS compliant, and come on a 1000 ft spool weighing 6.9 lb. Simplify your fiber optic deployment with Cleerline SSF's innovative design, ensuring ultra-low attenuation on tight bends. Explore this reliable solution for your next project.

Principales caractéristiques

  • Strong and durable advanced optical glass fibers
  • Integral polymeric coating protects glass fiber
  • Up to 10000x longer bend longevity than traditional fibers
  • High bend insensitivity increases safety factor
  • Simplified, easy termination process
  • Ultra low attenuation loss on tight bends
  • Unique 250 um soft peel jacket identifier
  • Suitable for inter- and intra-building communication
  • Durable jacket rated for -20 to 75°C operating temperature
  • High tensile load capacity: 500 N long term, 1000 N installation

    • Renseignements généraux

    Nom:Cleerline 6D50125MOM4P SSF Multimode Fiber Cable, 6 Strand, OM4, Plenum Indoor/Outdoor, 50/125, Spool, 1000'
    Category:Cleerline, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
    UPC Code:091037859662
    Country of Origin:China. Country of origin is subject to change.

    Spécifications

    Documents et ressources sur les produits

    Fiche de produit
