Cleerline 6D9125SMOS2P 6 Strand 9/125 µm SSF Fiber Cable, OS2, Indoor/Outdoor, Plenum, Yellow, 1000'

2ACS9125OS2PE|4E-2A25OS2PE
Acheter Cleerline

Cleerline 6D9125SMOS2P 6 Strand 9/125 µm SSF Fiber Cable, OS2, Indoor/Outdoor, Plenum, Yellow, 1000'

2ACS9125OS2PE|4E-2A25OS2PE

Se connecter prix revendeur

Devenir client ADI
Cleerline

Cleerline 6D9125SMOS2P 6 Strand 9/125 µm SSF Fiber Cable, OS2, Indoor/Outdoor, Plenum, Yellow, 1000'

2ACS9125OS2PE | 4E-2A25OS2PE

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

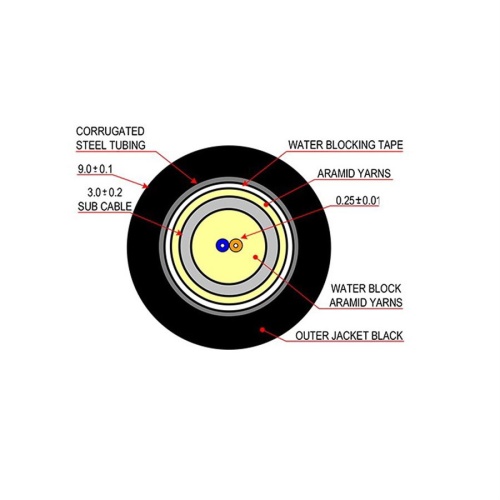

Cleerline SSF Corrugated Armored Steel Distribution OS2 cable features a polyethylene outer jacket with 2 fibers and water-blocking Kevlar yarns. Its core is secured by a corrugated armored steel tube delivering high crush resistance and easy installation, suitable for direct burial. The cable's polyethylene jacket offers UV and moisture resistance, ensuring durability in rugged environments. It is compatible with standard 50/125 and 9/125 fiber connectors and boasts high mechanical strength, exceptional fatigue resistance, and an integral coating that eliminates stripping while protecting the glass fiber. This cable provides up to 10,000 times the bend longevity of traditional fibers and maintains ultra-low attenuation loss on tight bends. The simplified termination process and exclusive 250 um soft peel jacket identifier facilitate ease of use. It meets or exceeds ITU-T G.657 and G.652 standards and IEC 60793-2-50 requirements. Specifications include 2 fibers, 125 um fiber size, 9 mm diameter, 1500 ft length, tensile load of 600 N long term, and crush resistance of 3000 N/100 m. Operating temperature ranges from -20 to 75 °C. This cable is rodent resistant and designed for extreme durability and crush resistance, making it ideal for installations demanding robust protection. Explore the reliable performance of Cleerline SSF armored steel distribution cable for your critical fiber optic projects.

Principales caractéristiques

  • Corrugated armored steel tube for high crush resistance
  • PE jacket ensures UV and moisture resistance
  • 2 to 12 fibers available with kevlar yarns for water blocking
  • Compatible with 50/125 and 9/125 fiber connector systems
  • Up to 10000x bend longevity of traditional fibers
  • Rodent resistant and suitable for direct burial
  • Ultra low attenuation loss on tight bend radius
  • Withstands tensile loads of 600 N long term and 2000 N during installation
  • Operating temperature range from -20 to 75 °C

    • Renseignements généraux

    Nom:Cleerline 6D9125SMOS2P 6 Strand 9/125 µm SSF Fiber Cable, OS2, Indoor/Outdoor, Plenum, Yellow, 1000'
    Category:Cleerline, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
    UPC Code:602573831243
    Country of Origin:China. Country of origin is subject to change.
