Ensure your installations are future-ready, with LTE
Due to rapidly-evolving cellular technologies, 2G/3G network sunsets are already on the horizon - with some having already been completed. Now's the time to adopt and adapt. Switch to LTE today, to offer customers long-lasting investment protection, and reduce your future truck rolls.

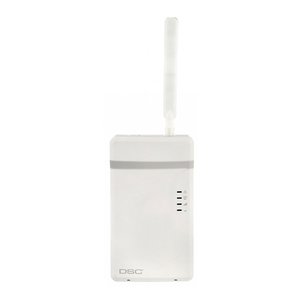

The LE4000 connects the alarm control panel to the cellular network and reports alarm signals directly to a monitoring station receiver (Sur-Gard System I-IP/ II/III/IV/5). The LE4000 uses the cellular network to ensure low-cost, high-speed and reliable alarm communications and is compatible with control panels that communicate using the Contact ID or SIA (300 baud) format.
The LE4000 is installed between the telephone connection of a control panel and telephone line. When used in a backup role, the communicator assesses the connection to the PSTN phone line, and if that has failed, it then connects to the cellular network to send an alarm signal to the monitoring station. In a primary role, the communicator simply sends the alarm transmission over the cellular network immediately.
Alarm signals are transmitted directly to the IP linecard of the monitoring station receiver without the need of clearinghouse involvement saving valuable time and eliminating a potential point of failure.
Activating and initializing the LE4000 can be done using the mobile interface or web-user interface provided by C24 Communications. No special tools are required.
Mobile Site for Easy Installation and Comprehensive Maintenance
C24 Communications mobile site (m.connect24.com) makes the installation a simple process and offers intuitive trouble-shooting features, cutting down on time and cost allocated to maintenance.
SMS Command & Control
The LE4000 can be configured to conveniently accept SMS commands from select phone numbers to trigger remote activation of the PGM outputs. Outputs can be used to remotely arm/disarm your alarm system or trigger other actions such as opening a garage door.
Advanced Panel Transmission Monitoring
The LE4000 can intelligently monitor the panel transmission and switch over to the cellular network when the phone line is down.
