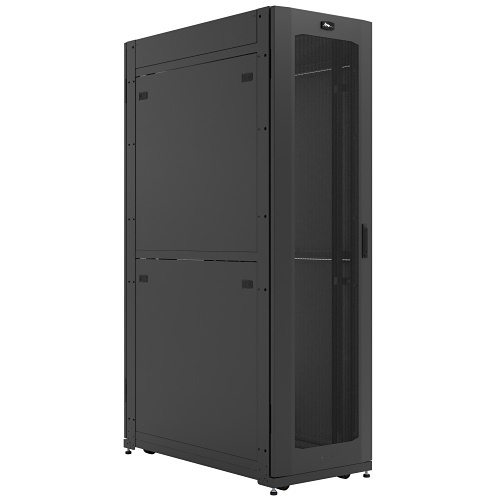

Product Overview
The Middle Atlantic SNE45D-4548-P1 server rack is expertly configured for digital (IP-based) security systems, accommodating high-density cabling, network equipment, and servers. Designed for modern data centers, this network server rack features passive ventilation for efficient cooling from front to rear, a 70% open area vented front door, and a split rear door for optimal airflow. The server rack cabinet. Includes a pair of split flush mount locking side panels, two pairs of adjustable cage-nut rackrails compatible with 6mm hardware, and is Lever Lock compatible, accepting all vertical 21” accessories. With dimensions of 24” width, 48” overall depth, and 45 rackspaces, this server data rack comes with 100 6mm cage nuts and rack screws, a solid top with brush cable pass-through, and is configured for passive front-to-back cooling. Additionally, this open frame server rack is UL/ETL listed and seismic certified, ensuring reliability and safety. The data rack cabinet also. Includes four leveling feet and four casters for easy positioning, making it an ideal choice for robust and efficient housing of digital security systems in data centers.
- Tool-Free Lever Lock System: Optional system for easy installation of small devices such as encoders, power supplies, and access control systems.
- Ventilation: 70% open area vented front door and split rear door for optimal airflow.
- Side Panels: Pair of split flush mount locking side panels for secure access.
- Rackrails:. Includes 2 pairs of adjustable cage-nut rackrails, compatible with 6mm hardware.
- Lever Lock Compatibility: Accepts all Lever Lock vertical 21” accessories for versatile mounting options.
- Dimensions: 24” width, 48” overall depth, and 45 rackspaces.
- Hardware: Comes with 100 6mm cage nuts and rack screws.
- Top Panel: Solid top with brush cable pass-through for organized cabling.
- Cooling: Configured for passive front-to-back cooling.
- Certification: UL/ETL listed and seismic certified for reliability and safety.
- Mobility:. Includes 4 leveling feet and 4 casters for easy positioning.
General Information
Name : Middle Atlantic SNE24D-4548-P1 SNE Series Server Data Rack Cabinet, 48" Deep, 24" Width, 45U , Middle Atlantic by Legrand
Category : Enclosures & Mounting Devices
UPC Code : 656747208027
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : NO-SNE244558
Manufacturer Part Number : SNE24D-4548-P1
Product Model : SNE24D-4548-P1
Product Series : SNE
Product Type : Cabinet/Enclosure
Technical Information
Material : Steel
Certifications
TAA Compliant : Yes
Physical Characteristics
Color : Black
Depth : 48"
Height : 84.77
Maximum Weight Capacity : 976.89 lb
Rack Depth : 44"
Rack Height : 45U
Width : 24"
Miscellaneous
Assembly Required : No
Certifications : TAA, UL Listed
Country of Origin : US
Environmental Certification : ECO PASSPORT, GREENGUARD Gold, LEED, RoHS
