Product Overview
The GRI series of commercial and industrial switch sets offers the installer two choices. The 400 Series incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations. The 410 Series has the standard terminals located on the top of the switch. Both options give the installer a regular gap of 1 1/2" , while the wide gap version is up to 3 1/4" , which covers the various types of steel door and frame conditions found at every commercial and industrial site. Spacers and mounting hardware are included with the set. The 410P version offers 3 feet of 2 conductor cable. Switches, magnets and mounting brackets are also available separately.
- Color: Brown
- Open Loop
- 1K Resistor
- Lifetime Warranty
- UL and ULC approved
- UL 10C Fire Rates
- Standard gap up to 1 1/2"
- Screw terminals (400 and 410)
- Longer Lead lengths available on request
- Screw Mount
- Concealed Terminals
- Spacer and mounting screws included
- Built-in E.O.L. resistors and diodes on request
- Supervisory loops or dummy terminals on request
General Information

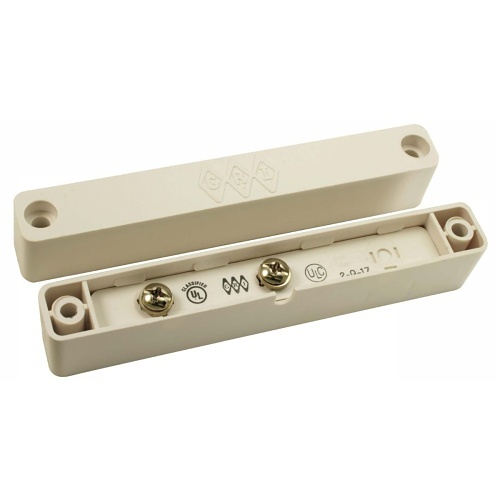

Name : GRI 401-B W/1K Industrial Surface Mount Switch Set, Standard Gap, Open Loop, Brown, Concealed Terminals, 1K Resistors , George Risk Industries
Category : Magnetic Contacts
UPC Code : 999999236486
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-401BWK1
Manufacturer Part Number : 401-B W/1K
Product Type : Magnetic Contact
Technical Information
Connectivity Technology : Wired
Contact Configuration : N.C.
Mounting Type : Surface Mount
Standard Gap : 1.5"
Standard Gap (mm) : 38.1
Physical Characteristics
Color : Brown
Product Information
Contact Type : Open Loop
Installation Type : Commercial
Miscellaneous
Features : End of Line (EOL) Resistor
