Federal Signal G-LED-DC-T-B GLOBAL Series LED Light

Brand: Federal Signal
ADI #:QF-GLEDCTB Model #: G-LED-DC-T-B  Name: Federal Signal G-LED-DC-T-B GLOBAL Series LED Light
  • Available in 24V DC and 120-240V AC 50/60Hz
  • Optional stainless steel ratchet adjustable mounting U-bracket (field installation required)
  • Two lens options- low- or high-profile

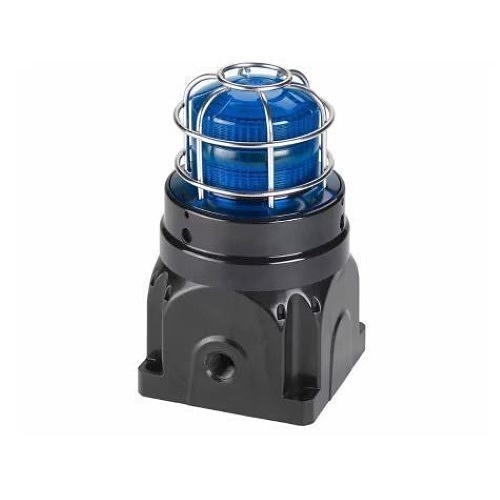

Image of QF-GLEDCTB

Product Overview

Federal Signal's patented Global Series LED Beacons feature a long-life LED the ability to select one of eight (8) flash patterns (user-configurable) and offers two lens options (low or high-profile). The device is rated to the latest protection concept, "Ex op is" (inherently safe optical radiation). The housing is made from GRP (Glass Reinforced Polyester) designed to serve the demanding needs of offshore marine and land-based industrial applications.The Global Series LED Beacons flameproof "Ex d" versions come standard with two (2) M20 entries. The increased safety "Ex de" versions include a separate terminal chamber for quick field termination or pass-through wiring, and includes three (3) M20 entries in a standard configuration.These units can be combined with other Global Series products to create factory direct custom configurations, or optional coupling kits are available for limited field fixturing. The Global Series LED Beacon is ideal for use in alarm control panel applications.

General Information

Name : Federal Signal G-LED-DC-T-B GLOBAL Series LED Light , Federal Signal
Category : Emergency Lights, Exit Lights & Lenses
UPC Code : 782979233909

Specifications

General Information

ADI Part Number : QF-GLEDCTB
Brand Name : Federal Signal
Manufacturer Part Number : G-LED-DC-T-B

Physical Characteristics

Color : Blue
Depth : 8.47"
Height : 7.5"
Width : 7.5"

Power Description

Input Voltage : 24V DC

Warranty

Limited Warranty : 5-Year

Miscellaneous

Environmental Certification : CE, UL
Environmentally Friendly : Yes
Features : 24VDC models contain a supervisory diode and four wire terminal block, Dome guard included, GRP (Glass Reinforced Polyester) Non-metallic corroision resistant design, LED has 8 on-board flash patterns, factory default is flashing at 60 FPM, M20 entries standard, Optional stainless steel ratchet adjustable mounting U-bracket (field installation required), Type 4X, IP66 enclosure
