Altronix NETWAY5BTQ 5-Port Bluetooth Switch with LINQ Board

Brand: Altronix
ADI #:AX-NW5BTQ Model #: NETWAY5BTQ  Name: Altronix NETWAY5BTQ 5-Port Bluetooth Switch with LINQ Board
  • 4x 10/100/1000 Mbps PoE / PoE+ (up to 30W) ports
  • VLAN (Virtual Local Area Networks) subnetwork allows for the grouping together of devices for improved network traffic and higher security
  • IEEE802.3af/3at/3bt compliant

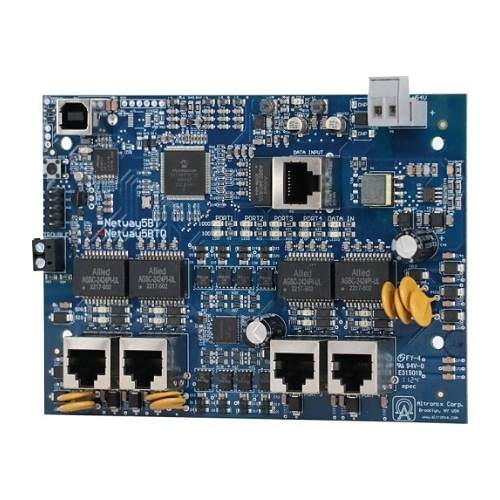

Image of AX-NW5BTQ

Product Overview

Discover the Altronix NetWay5BTQ, a compact and efficient network managed hardened 802.3bt 4PPoE switch board designed for seamless installation within Altronix enclosures. This innovative solution is perfect for Maximal and Trove series products, featuring a network data uplink and four IEEE802.3af/3at/3bt PoE ports, each delivering 90W, with a total power output of 240W. It simplifies your setup by utilizing a single Ethernet cable to connect to the headend. Ideal for integrating network door access systems with video surveillance, it also boasts embedded LINQ Technology for remote monitoring and control. Upgrade your network today with the Altronix NetWay5BTQ!

General Information

Name : Altronix NETWAY5BTQ 5-Port Bluetooth Switch with LINQ Board , Altronix
Category : Power Supply Boards
UPC Code : 782239976782
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : AX-NW5BTQ
Brand Name : Altronix
Manufacturer Part Number : NETWAY5BTQ
Product Line : NetWay
Product Model : NETWAY5BTQ
Product Name : 5-Port Managed Hardened 802.3bt 4PPoE Switch Board
Product Series : NetWay
Product Type : Power Injector

Technical Information

Output Voltage : 48-57V

Certifications

NDAA Compliant : Yes

Environmental Conditions

Operating Temperature (T-T) : -22-131°F
Storage Temperature (T-T) : -40-185°F

Network & Communication

Networking Standards : IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Physical Characteristics

Height : 0.75"
Weight : 0.25lb
Width : 4"

Power Description

Input Voltage : 120V AC, 220V AC
Maximum Output Power : 240W
Power over Ethernet (PoE) : Yes

Product Information

Length : 5.62"
Mount Type : Board Mount

Warranty

Limited Warranty : Lifetime
