Product Overview
General Information

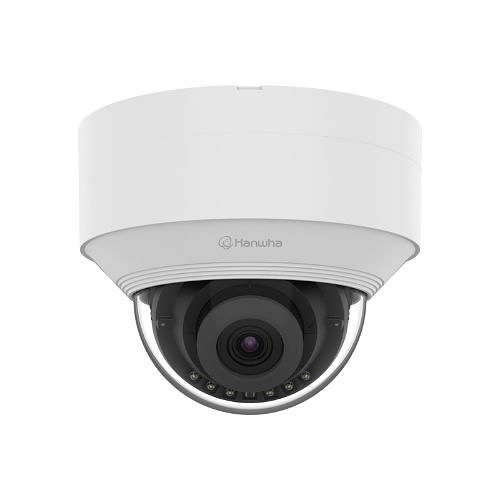

Name : Hanwha QNV-C8013R 5MP IR Outdoor Vandal Dome AI Camera, 3mm Lens, IP66, IK10 , Hanwha Vision
Category : Dome Cameras
UPC Code :
Specifications
General Information
ADI Part Number : SQ-QNVC8013R
Brand Name : Hanwha
Manufacturer Part Number : QNV-C8013R
Technical Information
Effective Camera Resolution : 5MP
Field of View : Diagonal, Horizontal, Vertical
Lens Type : Fixed
Maximum Aperture : f/1.6
Maximum Frame Rate : 30 fps
Night Vision : Yes
Video Formats : H.264, H.265, MJPEG
Video Resolution : 2688 x 1512
Camera
Image Sensor Type : CMOS
Certifications
Ingress Protection Rating : IP66
Display & Graphics
Maximum Video Resolution : 2592 x 1944
Environmental Conditions
Maximum Operating Temperature : 131°F
Minimum Operating Temperature : -22°F
Operating Humidity : 1
Exposure
Longest Shutter Speed : 1/5 Second
Minimum Illumination : 0.005 lux
Shortest Shutter Speed : 1/25000 Second
Lens
Focal Length : 3mm
Lens Included : Yes
Maximum Focal Length : 3mm
Physical Characteristics
Color : White
Form Factor : Dome
Weight : 1.27lb
Product Information
Diameter : 4.72"
Miscellaneous
Environmental Certification : CE, FCC, UL
Environmentally Friendly : Yes
Impact Protection Rating : IK10
