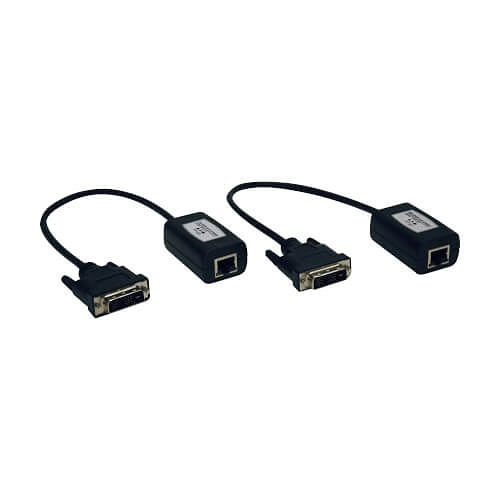

Image of TC-B140101
Shop all Eaton Tripp Lite

Eaton Tripp Lite B140-101 DVI Over CAT5/6 Passive Extender Kit, Box-Style Transmitter/Receiver for Video, up to 100' (30 m), TAA

B140-101|TC-B140101
Shop all Eaton Tripp Lite

Eaton Tripp Lite B140-101 DVI Over CAT5/6 Passive Extender Kit, Box-Style Transmitter/Receiver for Video, up to 100' (30 m), TAA

B140-101|TC-B140101

Sign In for Dealer Pricing

Become an ADI Customer
Eaton Tripp Lite

Eaton Tripp Lite B140-101 DVI Over CAT5/6 Passive Extender Kit, Box-Style Transmitter/Receiver for Video, up to 100' (30 m), TAA

B140-101 | TC-B140101

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The B140-101 is a DVI over Cat5 Passive Extender kit, which comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 100' (30.5m) away using a single CAT5e/6 Ethernet cable. To achieve maximum distance and resolution, use 24AWG Solid Wire CAT5e/6 cable (N202-Series). The B140-101 is compatible with all operating systems and is plug and play with no external power, software or drivers required. Installation is simple. Connect the built-in DVI connector on the transmitter unit to the source. Connect the built-in DVI connector on the receiver unit to a display. Finally, the RJ45 ports on the transmitter and receiver units are connected using a single CAT5e/6 cable. A 1920x1080 at 60 Hz signal can be extended up to 50' (15.2m) from the source or a 1024x768 at 60 Hz signal up to 100'.

Main Features

  • Transmitter and receiver units included
  • DVI-D Single-Link signal up to 100 ft
  • Supports Resolutions up to 1920 x 1080 at 60 Hz
  • Extends 1080p signal up to 50 ft
  • Compatible with 24AWG Solid Wire CAT5e/6
  • HDCP compatible
  • Works with all operating systems
  • Plug and play; no external Power needed
  • TAA Compliant for GSA Schedule

    • General Information

    Name:Eaton Tripp Lite B140-101 DVI Over CAT5/6 Passive Extender Kit, Box-Style Transmitter/Receiver for Video, up to 100' (30 m), TAA
    Category:Eaton Tripp Lite, Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders, ADI Pro Rewards
    UPC Code:037332154088
    Country of Origin:Taiwan, Province of China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Manufacturer Brochure
