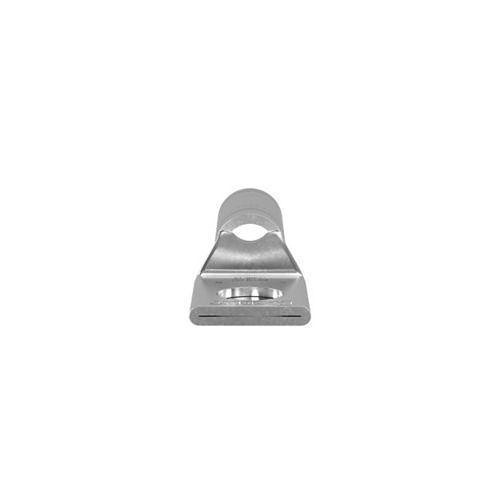

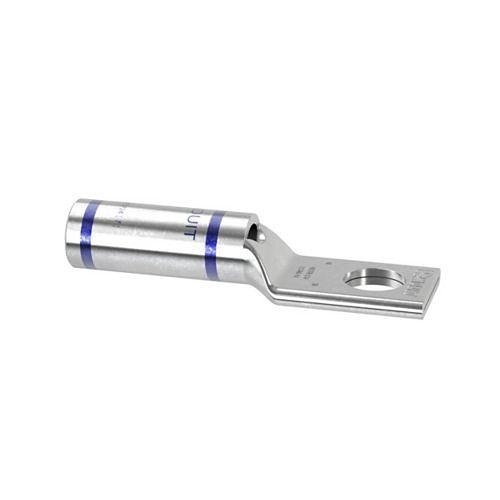

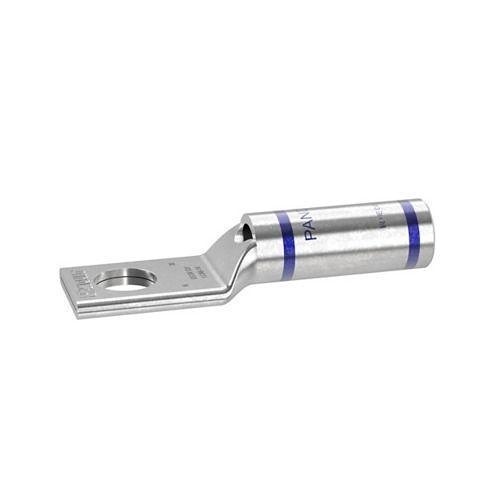

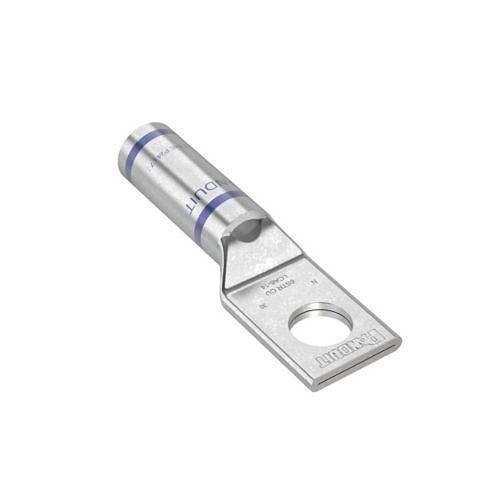

Panduit LCA6-14-L Compression Connector Lug, 1-Hole, #6AWG, Copper

LCA6-14-L | P9-LCA614L

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The LCA6-14-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Main Features

  • Tin-Plated Copper for Corrosion Resistance
  • One-Hole Standard Barrel Design
  • Color-Coded Barrels for Easy Crimp Die Selection
  • Inspection Window for Full Conductor Insertion
  • UL Listed and CSA Certified to 35 KV
  • Temperature Rated to 90°C

    • General Information

    Name:Panduit LCA6-14-L Compression Connector Lug, 1-Hole, #6AWG, Copper
    Category:Panduit, Batteries & Power Supplies, Power Accessories & Parts
    UPC Code:074983900060
    Country of Origin:. Country of origin is subject to change.
