Product Overview

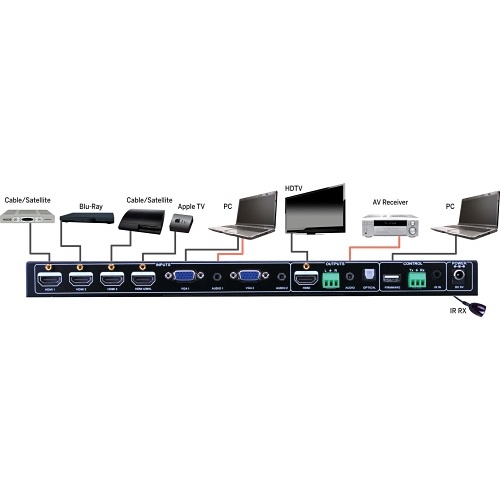

The EVSW1061 is a compact 6x1 multi-format switcher with 6 video inputs (3 HDMI, 2 VGA, 1 HDMI/MHL), 2 auxiliary audio inputs (switched following VGA), 1 HDMI output and 3 audio outputs (1 dual-mono analog audio, 1 3.5mm stereo audio, 1 optical audio). It not only switches VGA or HDMI/DVI/MHL input signals to HDMI output but can also scale to 6 different resolutions. The bypass HDMI feature provides comprehensive resolution capacities up to 4K & 1080p 3D. The unit also supports RS232 and IR control and as well as EDID management. The EVSW1061 works in a variety of applications from security monitoring, conference rooms, classrooms, control center and smart homes to name a few.
Main Features
General Information
Name:Evolution EVSW1061 Evolution 6X1 Multi-format Scaler Switcher
Category:Evolution by Vanco, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
UPC Code:741835105668
Country of Origin:Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number ZX-EVSW1061 Brand Name Evolution by Vanco Manufacturer Part Number EVSW1061 Product Line Evolution Product Model EVSW1061 Product Type Video Switchbox
Connectivity Technology Wired Device Supported A/V Receiver, Blu-ray Disc Player, Computer, Gaming Console, Satellite Receiver, TV Maximum Operating Distance 50'
Maximum Video Resolution 1920 x 1200
Number of HDMI Inputs 4 Number of HDMI Outputs 1
Depth 4.3" Height 1" Weight 1.4lb Width 4.63"
Length 13.75" Number of Displays Supported 1
Graphics Modes 4K Scan Format 1080p
Country of Origin TW
