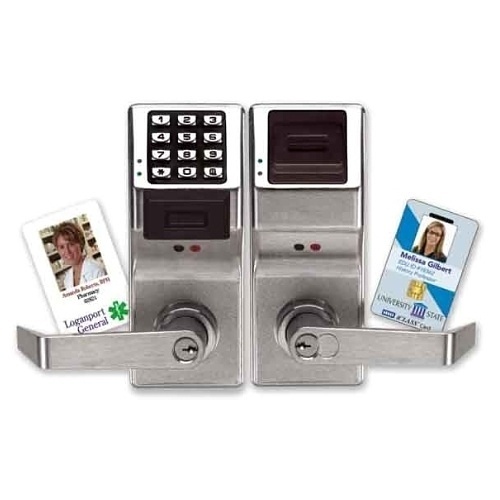

Image of NA-PDL82026D
Shop all Napco Security Technologies

Napco PDL8200/26D Trilogy Networx Advanced Wireless Networking Lock with iClass HID Reader Built-in

PDL8200/26D|NA-PDL82026D
Shop all Napco Security Technologies

Napco PDL8200/26D Trilogy Networx Advanced Wireless Networking Lock with iClass HID Reader Built-in

PDL8200/26D|NA-PDL82026D

Sign In for Dealer Pricing

Become an ADI Customer
Image of NA-PDL82026D
Napco Security Technologies

Napco PDL8200/26D Trilogy Networx Advanced Wireless Networking Lock with iClass HID Reader Built-in

PDL8200/26D | NA-PDL82026D

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Trilogy Networx Locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G, while providing all original Trilogy standalone lock’s functionality. Plus, the new PDL8200 Series features a built in HID iClass Reader, to accept 13.56MHz Smart Cards, including smart chip for transactional info, ideal for campuses and universities seeking a one-card solution. These powerful Networx locks also provide a quick, easy, economical access system with advanced features & functions, like automatic schedules, event logs and support for 2000 doors and 5000 existing iClass Prox. ID Cards/Badges, but with no wires to run, and no access panels or power supplies to buy or install. At its simplest, it’s one Grade 1 durable wireless lock per door, installed in about an hour, all communicating to a single Gateway (each gateway controls up to 63 locks), networked to any non-dedicated Windows-based PC. In addition to Wireless Trilogy Networx’ unsurpassed battery-life, exceeding 5 years, they feature new network-wide capabilities, executed from any lock or the network’s PC, including emergency priority global lockdown or unlock deployed in seconds, and you can activate (non-priority) system-wide free-passage or locking modes from the PC. For existing Trilogy installations, original standalone and new Trilogy Networx locks can seamlessly share one common database hosted on free Alarm Lock DL-WINDOWS software.

Main Features

  • Locks support up to 5000 iClass HID card users and/or 3-6 digit numeric PIN codes
  • Tap and Add ID Card Enrollment right at lock (individually or batch) or via PC
  • Unsurpassed 5-year+ battery life
  • Contains REX (Request to Exit) and DPS (Door Position Switch) features
  • System-wide free-passage enable or disable
  • 5000-User Code
  • Satin Chrome Plated

    • General Information

    Name:Napco PDL8200/26D Trilogy Networx Advanced Wireless Networking Lock with iClass HID Reader Built-in
    Category:Napco Security Technologies, Access Control, Locking Devices, Keypads & Readers, Electronic Locks, Smart Readers, ADI Pro Rewards
    UPC Code:785026105174
    Country of Origin:Dominican Republic. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
