Product Overview

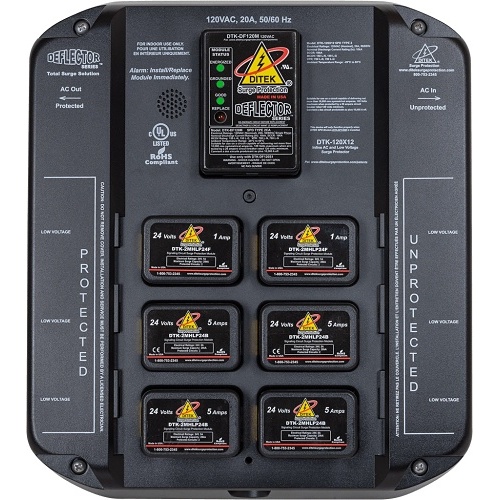

Visual, audible, smart. DITEK's DTK-120X12 sets a new standard for 120VAC power and low voltage surge protection. It will protect your system power and up to twelve (12) pairs of SLC, IDC/PIV, NAC, network or dialer circuits. This combo unit comes equipped with a DTK-DF120M, 120VAC, replaceable surge protection module and a 6-position mounting base for replaceable, low voltage surge modules. Adding DTK2MHLP/2MHTP modules for data/signal and dialer circuit protection provides a complete solution for your fire alarm system.
Specifications
ADI Part Number DK-120X12 Brand Name DITEK Manufacturer DITEK Corporation Manufacturer Part Number DTK-120X12 Product Model DTK-120X12 Product Name DTK-120X12 120VAC & Low Voltage Surge Protective Device Product Series DTK Product Type Surge Protector Module Sector Fire
Dataline Protection Data/Signal Material ABS Output Voltage 120V AC
NDAA Compliant Yes TAA Compliant Yes
Operating Temperature (T-T) -4-140°F
Height 2.3" Weight 3.70lb Width 10"
Input Voltage 120V AC
Limited Warranty 10-Year
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Package Contents - DTK-120X12 120VAC & Low Voltage Surge Protective Device
- Time Delay Switch
