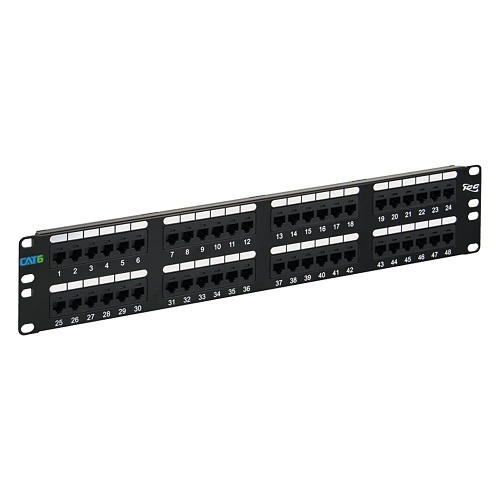

ICC ICMPP04860 48-Port Rackmount with CAT6 19" Network Patch Panel and Rear 110 IDC Terminal Blocks for Gigabit Network Switch, UL Listed, PoE Rated Gigabit Applications, 2U RS, Black

ICMPP04860

|

H2-MPP04860

Sign In for Dealer Pricing

New to ADI?Become a Customer
Data Sheet
Cable Type: Category 6
Compatible Rack Unit: 2U
Number of Ports: 48
Shop All ICC

ICC ICMPP04860 48-Port Rackmount with CAT6 19" Network Patch Panel and Rear 110 IDC Terminal Blocks for Gigabit Network Switch, UL Listed, PoE Rated Gigabit Applications, 2U RS, Black

ICMPP04860 | H2-MPP04860

Please sign in to view pricing, availability, and to add to cart.

Overview
Specifications
Documents

Product Overview

The ICC 48-Port CAT6 Patch Panel is designed for high-performance Gigabit Ethernet networks, offering superior connectivity for data applications. Constructed from 16-gauge cold-rolled steel, this patch panel ensures durability and supports maximum speed and bandwidth. It’s backward compatible with Cat5e and Cat5 cabling, making it a versatile choice for network upgrades. The panel features gold-plated contacts, supporting up to 100W Power over Ethernet (PoE++), and includes 110 IDC termination blocks for efficient installation and re-termination over 100 times. Numbered ports and color-coded TIA-568A/B wiring diagrams provide quick installation. Built to exceed ANSI/TIA-568 Category 6 standards, it minimizes crosstalk for enhanced network performance. UL listed for safety and TAA compliant, this 2U patch panel fits standard 19” racks.

Main Features

  • HIGH-PERFORMANCE CONNECTIVITY: Rack-mounted CAT6 component-rated fixed patch panel made with 16-gauge cold-rolled steel (16 GA CRS), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backwards compatible with Cat5e and Cat5 cabling
  • FUTURE-PROOF AND RELIABLE: Designed for Gigabit Ethernet, ensuring your network is future-proof. Ideal for Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE++) up to 100W
  • EFFICIENT INSTALLATION AND QUICK REFERENCE: Features 110 IDC termination to reduce installation time. The 110 IDC on the rear can be re-terminated over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference, fitting standard 19" EIA rack mount width with 1U (1.75") standard height
  • DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance
  • ENHANCED CROSSTALK CANCELLATION: Engineered to exceed ANSI/TIA-568 Category 5e connecting hardware requirements with enhanced crosstalk cancellation, reducing return loss and improving overall network performance

General Information

Name: ICC ICMPP04860 48-Port Rackmount with CAT6 19" Network Patch Panel and Rear 110 IDC Terminal Blocks for Gigabit Network Switch, UL Listed, PoE Rated Gigabit Applications, 2U RS, Black
Category: ICC, Data Comm & Networking, Patch Panels, Network Patch Panels
UPC Code: 633758011303
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.

Specifications

Documents and Resources

Download All Documents
Product Data Sheet
User Manual
