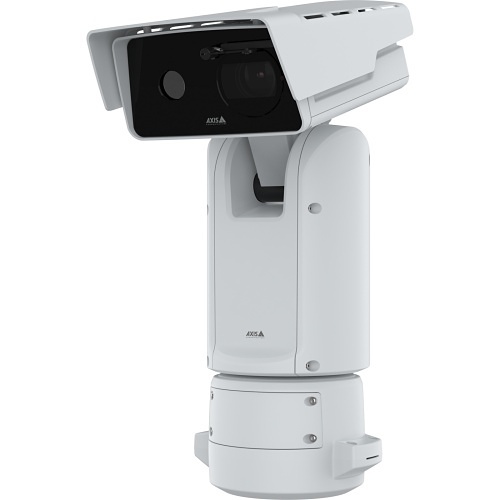

AXIS Q8752-E Bispectral PTZ Camera, 4.3-137.6mm Varifocal Lens
03052-001
|Z4-03052001
Shop All Axis Communications
AXIS Q8752-E Bispectral PTZ Camera, 4.3-137.6mm Varifocal Lens
03052-001 | Z4-03052001
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Specifications
ADI Part Number Z4-03052001 Brand Name AXIS Communications Manufacturer Part Number 03052-001 Product Name AXIS Q8752-E Mk II 35 mm 8.3 fps Product Type PTZ cameras; Thermal cameras
Field of View Horizontal, Vertical Field of View (Horizontal) 17° Field of View (Vertical) 12.8° Maximum Aperture f/1.2 Maximum Frame Rate 8.3fps Night Vision Yes Night Vision Type Infrared (IR) Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66 TAA Compliant Yes
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 140°F Minimum Operating Temperature -40°F Operating Humidity 1
Longest Shutter Speed 2 Second Minimum Illumination 0.01 lux, 0.06 lux Shortest Shutter Speed 1/66500 Second
Focal Length 35mm Maximum Focal Length 35mm
ADI Part Number Replaces Z4-01838001, Z4-01839001, Z4-01840001, Z4-01841001 Model Number Replaces 01838-001, 01839-001, 01840-001, 01841-001
Input Voltage 52-58V DC
Limited Warranty 5 Year
Environmental Certification CE, REACH, RoHS Environmentally Friendly Yes Indoor/Outdoor Outdoor Package Contents Camera, Connector kit, Installation Guide
