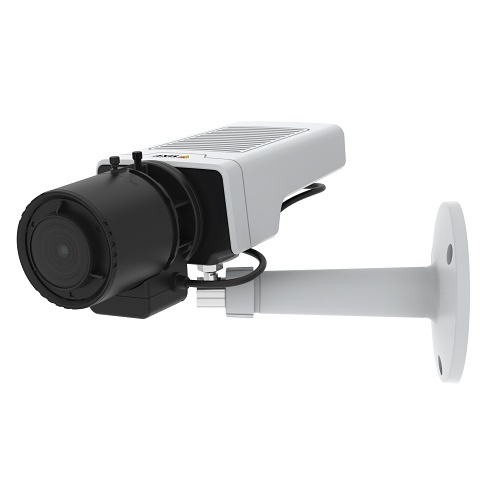

AXIS M1137 Mk II i-CS 5MP Box IP Camera, 2.8-13mm Lens
02581-001
|Z4-02581001
Shop All Axis Communications
AXIS M1137 Mk II i-CS 5MP Box IP Camera, 2.8-13mm Lens
02581-001 | Z4-02581001
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
AXIS M1137 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
Specifications
ADI Part Number Z4-02581001 Brand Name AXIS Communications Manufacturer Part Number 02581-001 Product Name AXIS M1137 MK II i-CS Product Series M11 Product Type Fixed cameras Supported Network Protocols IPv6 USGv6, NIST SP500-267
Aperture f/1.8 Built-in Microphone Yes Connectivity Technology Wired Effective Camera Resolution 5MP Field of View Horizontal, Vertical Lens Mount Type i-CS Lens Type Varifocal Maximum Aperture f/1.8 Maximum Frame Rate 30fps Minimum Focal Length 3.5mm Night Vision Yes Optical Zoom 2.9x Video Formats H.264 / AVC, H.265 / HVEC
Image Sensor Type CMOS Wide Dynamic Range Yes
Image Sensor Size 1/2.7" Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 0.85 Operating Temperature (T-T) -20-50°C
Minimum Illumination 0.04 lux
Focal Length 3.5-10mm Maximum Focal Length 10mm
Memory Card Supported Yes SD Card Slot Yes
ADI Part Number Replaces Z4-01769001, Z4-01769041 Model Number Replaces 01769-001, 01769-041
Color Black, White Weight 5.82oz
Input Voltage 10V DC, 28V DC Maximum Power Consumption 7.2W Power over Ethernet (PoE) Yes
Mount Type Box Mount, Tripod Mount
Limited Warranty 5-Year
Certifications EAC, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78 Features Audio Detection, Built-in Microphone, Day/Night, Mirror, Password Protection, Privacy Masking, SD Card Local Storage, Tampering Alarm, Vehicle Detection, Wide Dynamic Range
