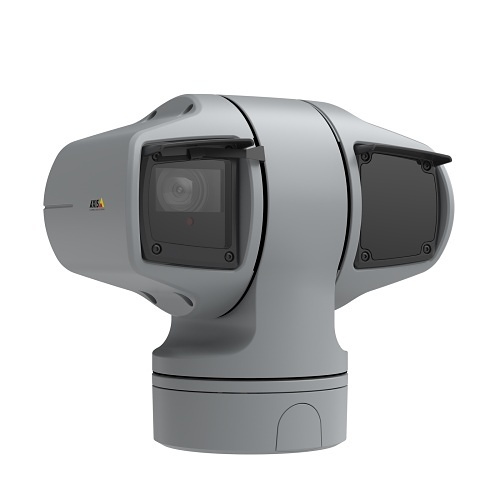

AXIS Q6225-LE Heavy-Duty PTZ Camera with Long-Range IR
Q6225-LE
|Z4-02316002
Shop All Axis Communications
AXIS Q6225-LE Heavy-Duty PTZ Camera with Long-Range IR
Q6225-LE | Z4-02316002
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. It offers HDTV 1080p resolution and a 1/2" sensor with 31x optical zoom. Featuring Lightfinder, Forensic WDR, and OptimizedIR it ensures sharp, clear images in any light conditions. This vandal-resistant, IK10-rated camera is resistant to both impacts and harsh weather conditions including wind speed up to 245 km/h (150 mph). It comes with built-in analytics preinstalled to alert you when needed. Additionally, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Specifications
ADI Part Number Z4-02316002 Brand Name AXIS Communications Manufacturer Part Number 02316-002 Product Model Q6225-LE Product Name AXIS Q6225-LE 50 Hz EUR Product Type PTZ cameras Supported Network Protocols IPv6 USGv6
Aperture f/1.36-4.6 Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Frame Rate 60fps Minimum Focal Length 6.7mm Night Vision Yes Video Formats H.264 / AVC, H.265 / HVEC
Image Sensor Type CMOS Night Vision Distance 1312.34 ft Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP68
Image Sensor Size 1/2" Maximum Video Resolution 1920 x 1080
Operating Temperature (T-T) -50-55°C
Minimum Illumination 0.001 lux
Focal Length 6.91-214.69mm Maximum Focal Length 201mm
Memory Card Supported Yes SD Card Slot Yes
ADI Part Number Replaces Z4-01442004, Z4-01442018, Z4-02516001 Model Number Replaces 01442-004, 01442-018, 02516-001
Durability Vandal Resistant
Input Voltage 240V AC Maximum Power Consumption 71W Power over Ethernet (PoE) Yes
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP68, IEC/EN 62262 IK10, ISO 12944-6 C5, ISO 21207 (Method B), MIL-STD-810G (Method 500.5), MIL-STD-810G (Method 501.5), MIL-STD-810G (Method 502.5), MIL-STD-810G (Method 503.5), MIL-STD-810G (Method 505.5), MIL-STD-810G (Method 506.5), MIL-STD-810G (Method 507.5), MIL-STD-810G (Method 509.5), MIL-STD-810G (Method 510.5), MIL-STD-810G (Method 521.3), MIL-STD-810H (Method 500.6), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Features PTZ, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
