Vigitron Vi30210U Maxii Net Series Hardened Managed 12-Port Industrial PoE Ring Switch, 90W IEEE 802.3bt, 490W Budget

Vi30210U

|

VG-VI30210U

Sign In for Dealer Pricing

New to ADI?Become a Customer

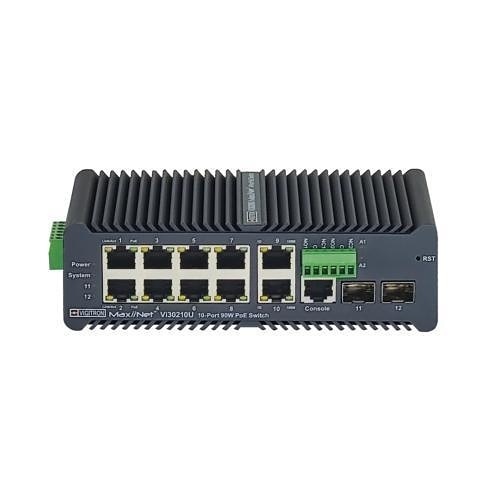

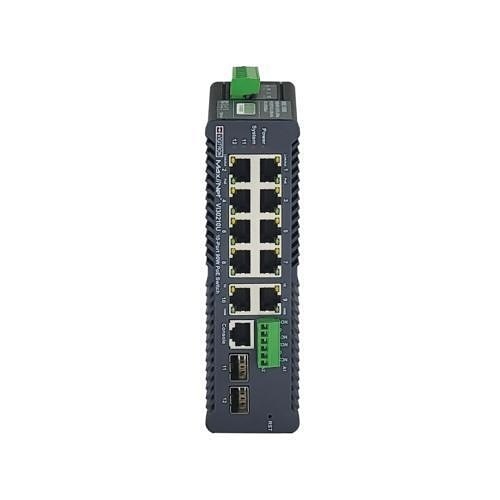

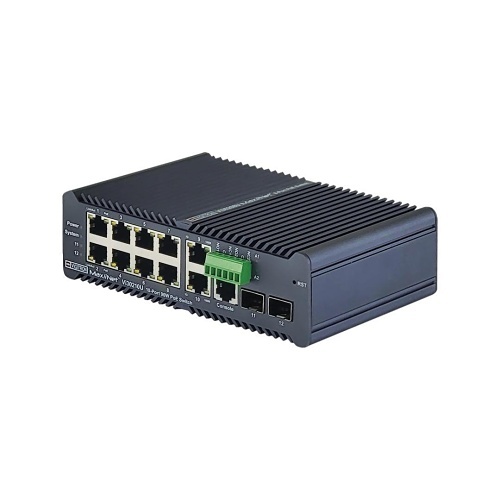

Image of VG-VI30210U
Shop All Vigitron

Vigitron Vi30210U Maxii Net Series Hardened Managed 12-Port Industrial PoE Ring Switch, 90W IEEE 802.3bt, 490W Budget

Vi30210U | VG-VI30210U

Please sign in to view pricing, availability, and to add to cart.

Overview
Specifications
Documents

Product Overview

The Vigitron Vi30210U is an industrial-grade PoE switch designed to deliver high-power PoE and reliable data performance in demanding security and industrial network environments. It features eight 1G PoE copper ports, two independent 1G ports, and four fiber uplink ports supporting 1G and 2.5G connectivity, with IEEE 802.3bt compliance providing up to 90W per port and a total PoE budget of 490W for high-demand devices such as PTZ cameras. Built for harsh conditions, the switch operates from -40°C to +75°C and includes dual power inputs, 6kV surge protection, jumbo frame support, and a 30 Gbps switching fabric. Advanced features such as PoE monitoring, automatic recheck, G.8032 rapid ring redundancy, LLDP, ACL support, Syslog reporting, and TimeZone-based time synchronization enhance reliability, resilience, and simplified network management for outdoor, transit, campus, and industrial surveillance deployments.

Main Features

  • 8 x 1G PoE independent copper, 2 x copper and 2 x 1G/2.5G Fiber uplink combo ports
  • 90W IEEE 802.3bt compliant PoE on 8 ports, 490W PoE budget
  • Jumbo frame programing at all bandwidth settings
  • Redundant 48-57VDC up to 500W back up power input
  • PoE Port monitoring, auto recheck, and start up delay
  • G.8032 V1/V2 Rapid Ring protocol compliant
  • Built in 6KV port surge protection
  • 30 Gbps switch fabric for Mega Pixel cameras handling
  • Programmable port connection monitor with automatic link and PoE reconnection
  • Operating temperature range -40ºC to +75ºC
  • General Information

    Name: Vigitron Vi30210U Maxii Net Series Hardened Managed 12-Port Industrial PoE Ring Switch, 90W IEEE 802.3bt, 490W Budget
    Category: Vigitron, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
    UPC Code:
    Country of Origin: . Country of origin is subject to change.
