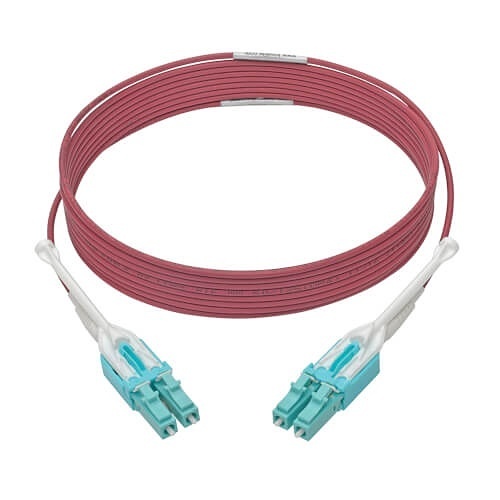

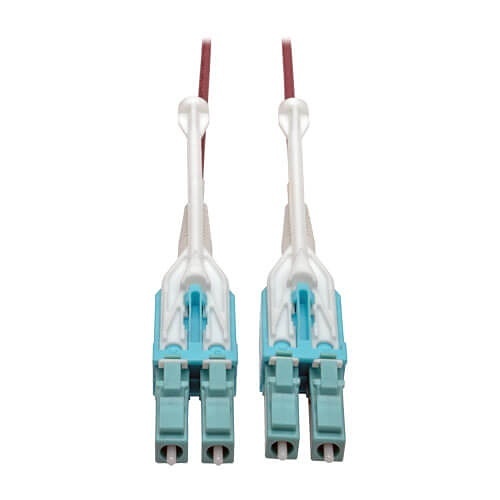

Eaton Tripp Lite N821-03M-MG-T 10G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable, LC/LC, Push / Pull Tabs, 3m, Magenta

N821-03M-MG-T|TC-N82103MMG
Shop all Eaton Tripp Lite

Eaton Tripp Lite N821-03M-MG-T 10G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable, LC/LC, Push / Pull Tabs, 3m, Magenta

N821-03M-MG-T|TC-N82103MMG

Sign In for Dealer Pricing

Become an ADI Customer
Eaton Tripp Lite

Eaton Tripp Lite N821-03M-MG-T 10G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable, LC/LC, Push / Pull Tabs, 3m, Magenta

N821-03M-MG-T | TC-N82103MMG

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The N821-03M-MG-T 10 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable is OM4-rated for use with 10Gb Ethernet applications up to 400 meters (at 850 nm). Suited for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers, this low-cost cable provides four times more bandwidth than conventional 62.5 µm multimode fiber and performance rivaling that of singlemode cable. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. Dual male LC connectors are widely compatible and thoroughly tested to meet stringent insertion loss standards. Premium-grade ceramic ferrules are designed specifically to handle applications of 10Gb or higher. Colored magenta for immediate identification as an OM4 cable, the laser-optimized multimode fiber (LOMMF) N821-03M-MG-T is backward compatible with existing 50/125 fiber and commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources. The low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making this cable perfect for poorly ventilated areas. The slim, space-saving uniboot design is easy to manage through ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.

Main Features

  • OM4-rated for 10 Gb Ethernet applications
  • Magenta color for easy OM4 identification
  • Allows 10 Gb serial transmission up to 400 m
  • Recommended for LANs, SANs, and data centers
  • Provides 4x more bandwidth than 62.5 µm fiber
  • Compatible with VCSEL and LED laser sources
  • Backward compatible with existing 50/125 fiber

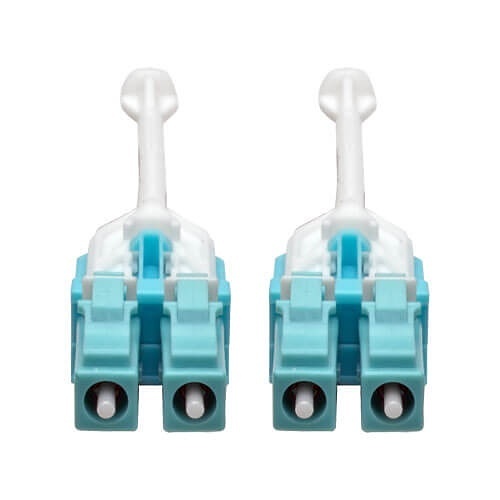

  • Push/pull tab connectors for easy handling
  • Premium-grade ceramic ferrules for high-speed use
  • Low-smoke zero-halogen jacket for safety

    • General Information

    Name:Eaton Tripp Lite N821-03M-MG-T 10G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable, LC/LC, Push / Pull Tabs, 3m, Magenta
    Category:Eaton Tripp Lite, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Patch Cords, ADI Pro Rewards
    UPC Code:037332201683
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
