24-Port Patch Panel Manages and Organizes High-Density Cat6 Network Cabling

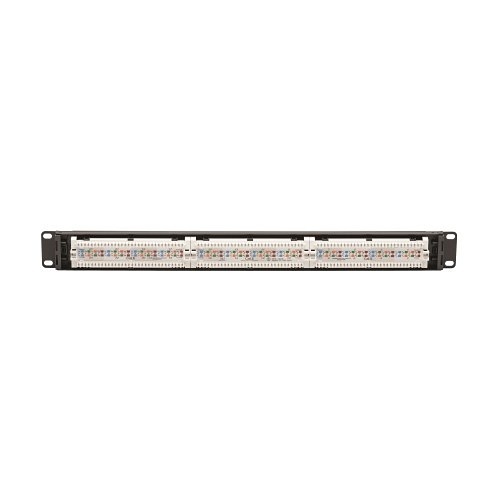

This patch panel enables quick, easy cable patching. Just plug Cat6 cables into its 24 front RJ45 ports, and use a 110 or Krone punch-down tool (do not use a 4/5 pair 110 punch-down tool) to terminate color-coded connections in the rear. Both the front and rear connectors are clearly numbered, and the front ports have blank labels to help you identify individual cable runs. The N252-P24 supports EIA/TIA 568A and 568B wiring standards and is compatible with all network applications.
Specifically Designed for Use in Power over Ethernet Plus (PoE+) Applications
This Power over Ethernet patch panel maximizes performance with PoE+ applications. It prevents spark-gap erosion that degrades the plug and jack contacts over time and can affect data and/or power transmission capabilities. The N252-P24 is designed to handle the frequent mating and unmating of surveillance cameras, VoIP phone systems, wireless access points and other PoE and PoE+ devices under electrical load.
Mounts in 1U of Space in Your 19 in. Enclosure or Open Frame Rack

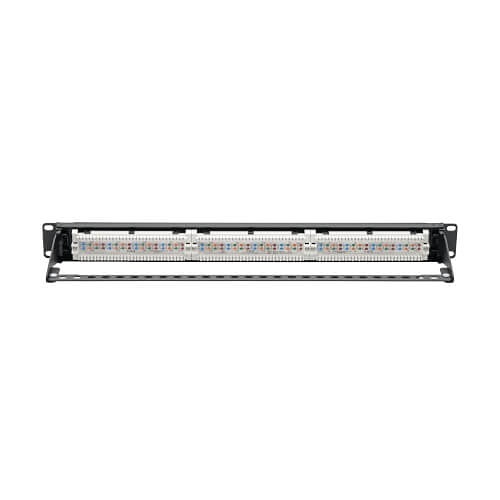

The high-density patch panel supports mounting in 1U of space in EIA-standard 19-inch racks. Included cable ties and a removable cable management bracket help organize your connections, cut down on cord clutter and maintain stable performance.
TAA-Compliant for GSA Schedule Purchases
The N252-P24 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
The N252-P24 is backed by a lifetime warranty, ensuring reliability and performance.
- Patch cables to PoE+ devices mounted in areas that are difficult to reach or have no electrical outlets
- Add routers, switches, wireless access points, security cameras, sensors and other PoE+ devices to an Ethernet network configuration
Name : Tripp Lite N252-P24 CAT6 24-Port Patch Panel, PoE+ Compliant, 110/Krone, 568A/B, RJ45 Ethernet, 1U Rack-Mount, TAA , Tripp Lite by Eaton
Category : Network Patch Panels
UPC Code : 037332210425
Country of Origin : Taiwan, Province of China. Country of origin is subject to change.
ADI Part Number : TC-N252P24
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : N252-P24
Product Model : N252-P24
Product Name : N252-P24 24-Port 1U Rack-Mount Cat6 Patch Panel - PoE+ Compliant
Product Type : Network Patch Panel
Shipping Weight (Approximate) (g) : 725.748
Number of Network (RJ-45) Ports : 24
Total Number of Ports : 24
Color : Black
Compatible Rack Unit : 1U
Compatible Rack Width : 19"
Depth : 4.38" (111.30 mm)
Depth (mm) : 111.3
Form Factor : Rack-mountable
Height : 1.73" (44 mm)
Height (mm) : 44
Product Color : Black
Shipping Depth : 2.90" (73.66 mm)
Shipping Depth (mm) : 73.66
Shipping Height : 2.80" (71.12 mm)
Shipping Height (mm) : 71.12
Shipping Weight (Approximate) : 725.7 g
Shipping Width : 19.80" (502.92 mm)
Shipping Width (mm) : 502.92
Width : 18.89" (479.80 mm)
Width (mm) : 479.8
Limited Warranty : Lifetime
Country of Origin : Taiwan
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul> <li>N252-P24 24-Port 1U Rack-Mount Cat6 Patch Panel - PoE+ Compliant</li> <li>Cable Management Bracket</li> <li>8 x Cable Ties</li> <li>Quick Start Guide</li> </ul>
TAA Compliant : Yes
