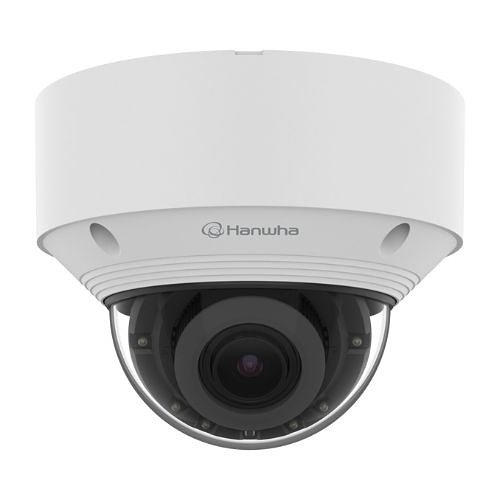

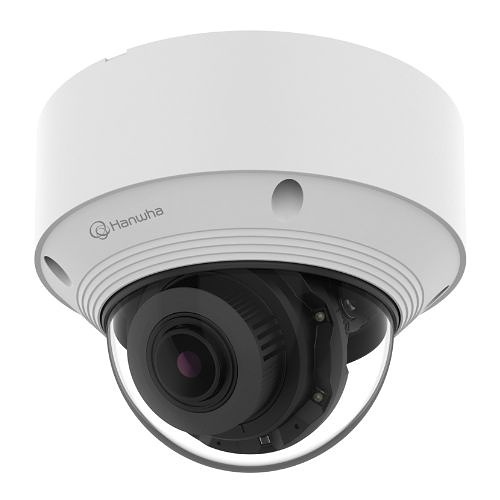

Hanwha QNV-C8083R Q-Series 5MP IR Vandal Dome Camera 3.2-10.2mm Motorized Varifocal Lens, White
QNV-C8083R
|SQ-QNVC8083R
Shop All Hanwha Vision
Hanwha QNV-C8083R Q-Series 5MP IR Vandal Dome Camera 3.2-10.2mm Motorized Varifocal Lens, White
QNV-C8083R | SQ-QNVC8083R
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Discover the Hanwha QNV-C8083R Q-Series 5MP IR Vandal Dome Camera, offering crisp 5MP video at up to 30 frames per second. Equipped with a motorized varifocal lens (3.2-10.2mm), it supports fine-tuned zooming for precise surveillance. Benefit from clear imaging in low light with color performance at 0.07 Lux and black and white clarity at 0.007 Lux. This camera supports H.265, H.264, and MJPEG codecs and enables multiple streaming profiles (up to five). Featuring Day and Night functionality with ICR, wide dynamic range (120dB), and robust protection (IP66, IK10), it's ideal for all environments. Local storage is flexible with a Micro SD slot supporting up to 256GB. Power over Ethernet (PoE) simplifies installation with a maximum power draw of 12.95W. Upgrade your security setup today with this reliable, high-performance camera.
Main Features
- Max. 5MP resolution
- Max. 30 fps
- Color 0.07Lux (F1.6, 1/30sec); BW 0.007Lux (F1.6, 1/30sec, 30IRE)
- Focal length 3.2-10.2mm (3.2x) motorized varifocal
- H.265, H.264, MJPEG codec supported
- Multiple streaming (up to 5 profiles)
- Day and Night (ICR), WDR (120dB)
- Micro SD/SDHC/SDXC 1 slot 256GB
- IP66, IK10
- PoE max 12.95W
General Information
Name: Hanwha QNV-C8083R Q-Series 5MP IR Vandal Dome Camera 3.2-10.2mm Motorized Varifocal Lens, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 8801089219909
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number SQ-QNVC8083R Brand Name Hanwha Vision Country of Origin VN Manufacturer Hanwha Vision Manufacturer Part Number QNV-C8083R Product Model QNV-C8083R Product Name 5 MP IR Vandal Dome Camera with Varifocal lens Product Series Q Product Type Dome Camera
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View Diagonal, Horizontal, Vertical Field of View (Horizontal) 95.0° Field of View (Vertical) 69.00° Lens Type Varifocal Maximum Aperture F1.6 Maximum Frame Rate 30.0fps Minimum Focal Length 3.20mm Night Vision Yes Night Vision Type Infrared (IR) Video Formats H.264 / AVC, H.265 / HEVC, MJPEG Wide Dynamic Range Yes
Image Sensor Type CMOS Night Vision Distance 98.43'
Ingress Protection Rating IP66
Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 131.00°F Minimum Operating Temperature -22.0°F Operating Humidity 0-95% RH (Non-condensing)
Longest Shutter Speed 1/5 Second Minimum Illumination 0.0070lux Shortest Shutter Speed 1/12,000 Second
Network (RJ-45) Yes
Focal Length 3.2-10.2mm Lens Included Yes Maximum Focal Length 10.20mm Minimum Aperture f/3.1
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome Weight 1.93lb
Diameter 5.51" Mount Type Conduit Box Mount
ADI Part Number Alternative HX-D15Z2S, HX-OD48G2LIZ, HX-OD2747G22, HX-OD2743G2, HX-OD2747G2P, HX-7146IZHSY, HX-BL7546IY, HX-D14Z2HS, HX-D7547G0PX, HX-ECID64Z2, HX-OD2743G2B, HX-FCDD7547, HX-BL7A46IY ADI Part Number Replaces HX-OD2743G2, HX-ID7146I Model Number Alternative PCI-D15Z2S, DS-2CD3748G2T-LIZSU 2.7-13.5MM, DS-2CD2747G2-LZS, DS-2CD2743G2-IZS, DS-2CD2747G2T-LZS, IDS-2CD7146G0-IZHSY (2.8-12MM), IDS-2CD7546G0-IZHSY 2.8-12MM, PCI-D14Z2HS(2.8-12MM), IDS-2CD7547G0/P-XZHSY, ECI-D64Z2, DS-2CD2743G2-IZS (BLAC Model Number Replaces DS-2CD2743G2-IZS, IDS-2CD7146G0-IZS 2.8-12MM
Storage Type SD Card
Maximum Resolution 1280 x 720
Features 3.2 - 10.2mm (H - 95°-29°/V - 69°-21°) motorized varifocal lens Impact Protection Rating IK10 Indoor/Outdoor Outdoor
