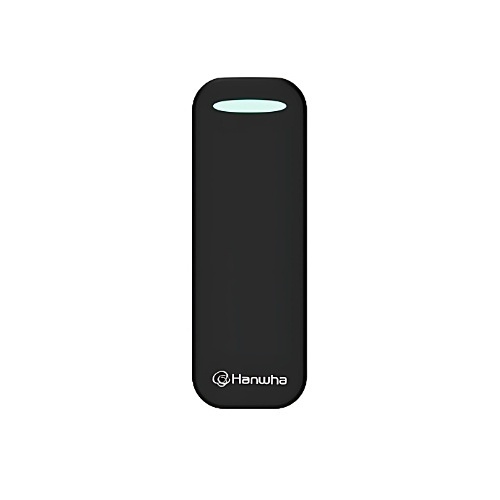

Hanwha NOD-AX10S OnCAFE Mullion Mount Credential Reader, Multi-Technology, 13.56 MHz NFC, 125 kHz PROX, Bluetooth BLE 5.3
NOD-AX10S
|SQ-NODAX10S
Shop All Hanwha Vision
Hanwha NOD-AX10S OnCAFE Mullion Mount Credential Reader, Multi-Technology, 13.56 MHz NFC, 125 kHz PROX, Bluetooth BLE 5.3
NOD-AX10S | SQ-NODAX10S
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This multi-technology multi-reader delivers versatile and secure access control with support for 13.56MHz (NFC), 125kHz (PROX), and Bluetooth BLE 5.3, seamlessly integrating into both Wiegand and OSDP infrastructures via auto-detection. Engineered for durability and performance, it features accelerometer-based tamper detection, remote firmware upgrade capabilities, and an EAL6+ Secure Element for enhanced data protection. With a typical read range of 2", it supports all Ethos-compatible credentials and operates reliably in harsh environments thanks to its IP65+ rating and UV/water-resistant UL94-V0, UL746C-F1 plastics. Measuring 5.25x1.81x0.73" (133.4x46x18.5mm), it runs on 5–24VDC with a 500mA draw at 12VDC, and meets rigorous standards including FCC, IC, CE, UL294, and OSDP Verified V2.2 for trusted global deployment.
Specifications
ADI Part Number SQ-NODAX10S Brand Name Hanwha Vision Manufacturer Part Number NOD-AX10S Product Line OnCafe
