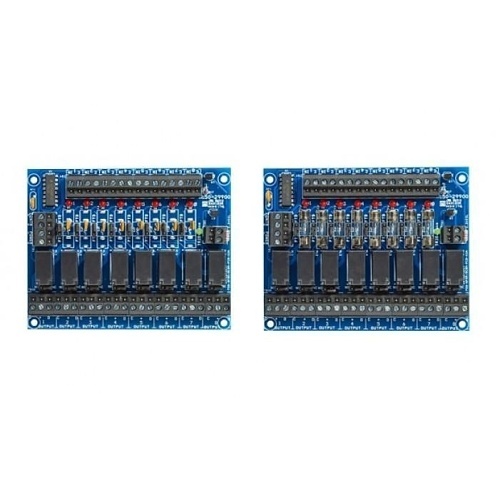

Securitron PDB-8C8R2 Access Control Board with Fire Alarm Interface, 8 PTC Polyswitch, 2A

PDB-8C8R2 | SN-PDB8C8R2

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

Securitron PDB-8C8R2 Power Distribution 8 PTC 2AOutput 1A w/Relays/FT.

Main Features

8 Heavy duty Relays with individual Inputs and Status LED’s

Each Relay Input can be Activated from Low Current Open Collector, Normally Closed or Normally Open Switch

EOL End of Line Resistor Fire Interface Master Trigger de-energizes all Output Relays that are Enabled

Universal 12 – 28VDC power input (Nominal 12-24VDC)

8C8R is Class 2 Power Limited

Class 1 wiring required for 8F8R unless powered by a UL 294 or UL 603 or ULC S318 or ULC S533 listed power supply with class 2 output. There shall be a min of ¼ separation between power limited and non-power-limited circuits.

Available with Fuses or PTC Circuit Breakers

Each Output may be Individually Configured for: Fire Trigger (FT) Enabled or (FTD) Disabled N/O or N/C Option Configures the Relay Switched Output

Each Output 1-8 has a protected, continuous Output and a Relay controlled Output

Control Power and Main Lock Power may be Isolated (Separate Power Supplies) at Users Option

General Information

Name: Securitron PDB-8C8R2 Access Control Board with Fire Alarm Interface, 8 PTC Polyswitch, 2A

Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supply Boards

UPC Code: 784607046356

Country of Origin: United States. Country of origin is subject to change.

Specifications

: ADI Part Number SN-PDB8C8R2 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number PDB-8C8R2 Product Model PDB-8C8R2 Product Name Securitron PDB-8C8R2 Power Distribution Board Product Type Power Supply
