STI SS2485EV-EN Indoor / Outdoor Surface with Horn Momentary (Illuminated) Stopper Station, 'EVACUATION' Label, Blue
SS2485EV-EN
|SF-2485EVEN
Shop All Safety Technology International
STI SS2485EV-EN Indoor / Outdoor Surface with Horn Momentary (Illuminated) Stopper Station, 'EVACUATION' Label, Blue
SS2485EV-EN | SF-2485EVEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

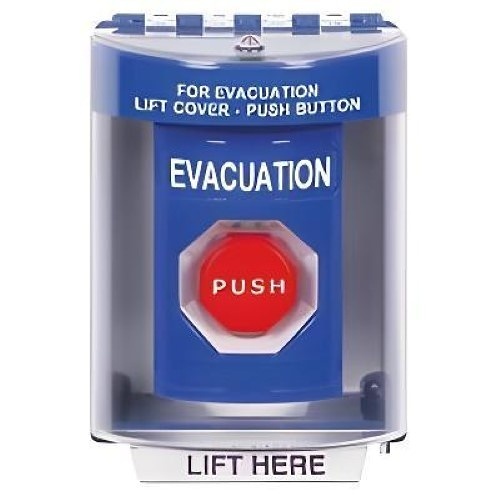

This Stopper Station, momentary push button switch includes a Universal Stopper protective cover with an internal horn. The button is housed in a curved shell with EVACUATION messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). For indoor use, two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC are included. Part of the Stopper Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
- Momentary push button activation
- Raised EVACUATION label
- Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
- Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white)
- Protective cover with horn helps protect button from damage and accidental activation
- UL/cUL Listed
- ADA Compliant
General Information
Name: STI SS2485EV-EN Indoor / Outdoor Surface with Horn Momentary (Illuminated) Stopper Station, 'EVACUATION' Label, Blue
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950536871
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2485EVEN Brand Name Safety Technology International Manufacturer Part Number SS2485EV-EN
