STI SS2338EX-EN Stopper Station Indoor/Outdoor Flush Pneumatic, White
SS2338EX-EN
|SF-2338EXEN
Shop All Safety Technology International

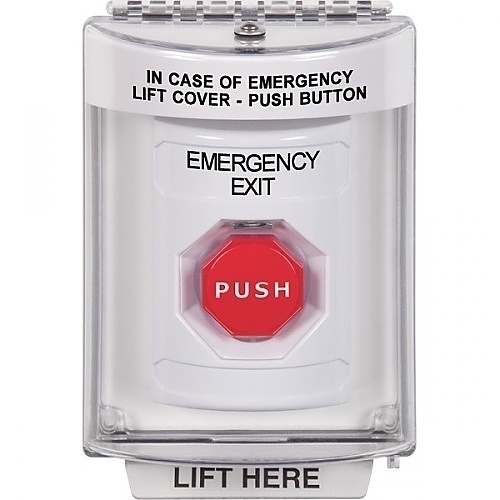

STI SS2338EX-EN Stopper Station Indoor/Outdoor Flush Pneumatic, White
SS2338EX-EN | SF-2338EXEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Multipurpose push button switches cover a wide range of applications both indoors and outdoors. They're called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation. A number of standard models are available or we can create custom units to meet your needs exactly. You have your choice of any of five universal shell colors, several button styles, standard or custom wording and language.
Main Features
- Pneumatic push button
- Raised EMERGENCY EXIT label
- Switch rating 10 amps @ 240 VAC resistive and has a timer range: 2 - 60 seconds (± 15%) with repeat accuracy ± 10%
- Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15° to 120°F (-9° to +49°C)
- Pneumatic adjustable timer opens or closes a circuit and has a timed delay before reset. No electricity to operate
- Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white)
- Ideal for security applications
- 1 Form Z, 1 N.O. and 1 N.C. contact
- ADA Compliant, UL recognized component UL508
General Information
Name: STI SS2338EX-EN Stopper Station Indoor/Outdoor Flush Pneumatic, White
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950503712
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2338EXEN Brand Name Safety Technology International Country of Origin US Manufacturer Part Number SS2338EX-EN Product Line Stopper Station Product Series SS2
Color White
Contact Type NO/NC (Combination) Print/Message EMERGENCY EXIT
