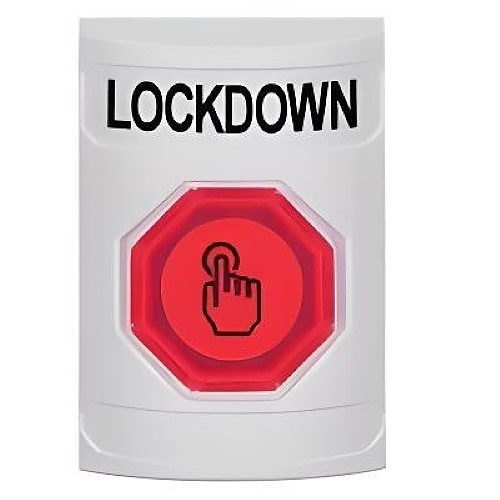

STI SS2306LD-EN Stopper Station, No Cover, Momentary Illuminated, 'LOCKDOWN' English Label, White
SS2306LD-EN
|SF-2306LDEN
Shop All Safety Technology International
STI SS2306LD-EN Stopper Station, No Cover, Momentary Illuminated, 'LOCKDOWN' English Label, White
SS2306LD-EN | SF-2306LDEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
These multipurpose push button switches cover a wide range of applications both indoors and outdoors. They're called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation.
Main Features
- Momentary Illuminated push button
- Raised LOCKDOWN label
- Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
- 12-24VAC/VDC LED
- UL/cUL Listed
- ADA Compliant
- Models used with LT-1UL Latching Timer Module are Listed for access control
General Information
Name: STI SS2306LD-EN Stopper Station, No Cover, Momentary Illuminated, 'LOCKDOWN' English Label, White
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950535706
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2306LDEN Application/Usage Indoor/Outdoor Brand Name Safety Technology International Manufacturer Part Number SS2306LD-EN Product Line Stopper Station Product Name SS2306LD-EN Emergency Buttons and Pull Stations Product Series SS2 Product Type Emergency Button and Pull Station
Maximum Operating Temperature 250.00°F Minimum Operating Temperature 40.0°F
Color White Material Stainless Steel
Input Voltage 12V AC, 250V AC
Environmental Certification CE, UL Environmentally Friendly Yes
