STI SS2239ES-EN Stopper Station Push Button with Universal Stopper Cover, Flush Mount, Turn-to-Reset Illuminated, 'EMERGENCY STOP' Label, Yellow
SS2239ES-EN
|SF-2239ESEN
Shop All Safety Technology International
STI SS2239ES-EN Stopper Station Push Button with Universal Stopper Cover, Flush Mount, Turn-to-Reset Illuminated, 'EMERGENCY STOP' Label, Yellow
SS2239ES-EN | SF-2239ESEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

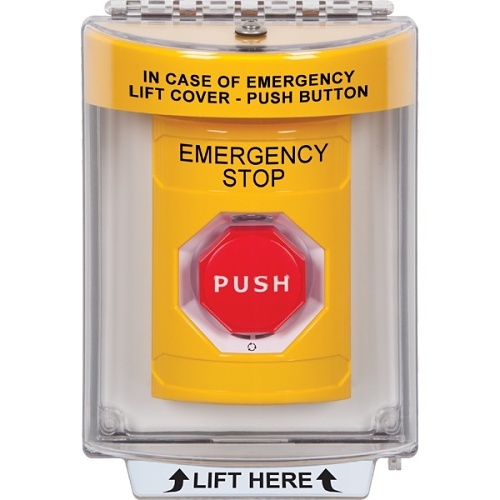

This Stopper® Station, turn-to-reset push button switch with Universal Stopper protective cover. The push button is housed in a curved shell with EMERGENCY STOP messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Specifications
ADI Part Number SF-2239ESEN Manufacturer Part Number SS2239ES-EN Product Line Stopper Station Product Model SS2239ES-EN
Material Polycarbonate
Depth 1.62" Height 4.86" Width 3.22"
Limited Warranty 3-Year
