STI SS229ES-EN Stopper Station Push Button with Shield, Turn-to-Reset Illuminated, EMERGENCY STOP Label, Yellow
SS2229ES-EN
|SF-2229ESEN
Acheter Safety Technology International
STI SS229ES-EN Stopper Station Push Button with Shield, Turn-to-Reset Illuminated, EMERGENCY STOP Label, Yellow
SS2229ES-EN | SF-2229ESEN
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu

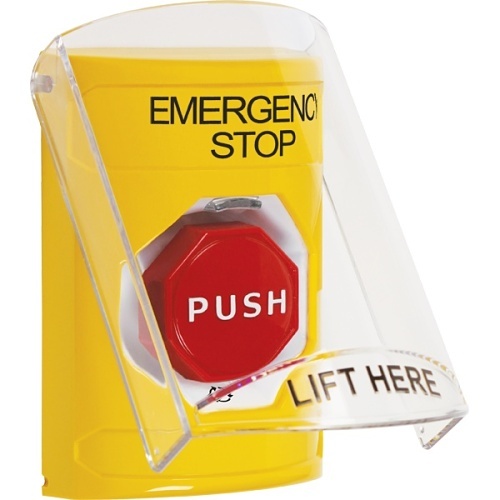

This Stopper® Station, turn-to-reset push button switch, with shield, is housed in a curved shell with EMERGENCY STOP messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Spécifications
ADI Numéro du produit SF-2229ESEN Code fabricant SS2229ES-EN Gamme Stopper Station Modèle de produit SS2229ES-EN
Latence CAS (Column Address Strobe) Polycarbonate
Temperature Maximale d'Opération 250°F Temperature Minimale d'Opération -40°F
Hauteur 4.86" Largeur 3.22" Profondeur 1.62"
Tension d'entrée 125V AC, 250V AC
Imprimé/Message EMERGENCY STOP
Garantie Limitée 3-Year
Conforme ADA Yes
