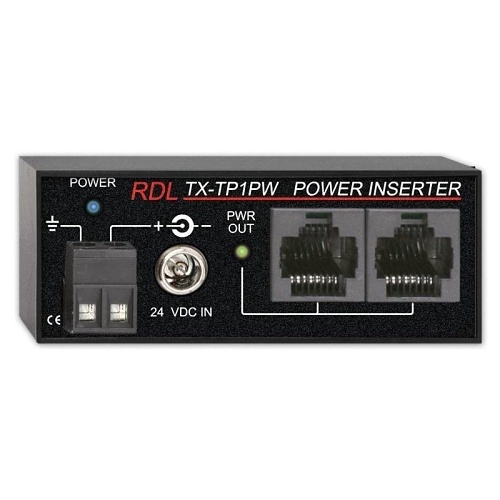

Image of RL-TXTP1PW
Shop all Radio Design Labs

RDL TX-TP1PW Single Output Power Inserter for Twisted Pair Units

TX-TP1PW|RL-TXTP1PW
Shop all Radio Design Labs

RDL TX-TP1PW Single Output Power Inserter for Twisted Pair Units

TX-TP1PW|RL-TXTP1PW

Sign In for Dealer Pricing

Become an ADI Customer
Radio Design Labs

RDL TX-TP1PW Single Output Power Inserter for Twisted Pair Units

TX-TP1PW | RL-TXTP1PW

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The TX-TP1PW is a single output power inserter compatible with RDL twisted pair products. The TX-TP1PW is powered from a 24V DC power supply using either the power jack or the detachable terminal block. A dual-RJ45 jack set is provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. Output voltage is protected by an automatically resetting fuse. The output power LED facilitates identification of wiring faults. Module power is indicated by a front-panel LED. The TX-TP1PW is ideal for powering remote twisted pair modules from any convenient location.

Main Features

  • Power Remote Senders and Receivers from Convenient Location
  • 24V DC Power Input on dc Power Jack or Detachable Terminal Block
  • Blue Power LED Shows Module is Receiving Power
  • Green LED Indicates Correct dc Output Voltage on RJ45s
  • Two Associated RJ45 Jacks Provide Power Output
  • Receiver May Be Powered From One RJ45 Jack
  • Sender May Be Powered From One RJ45 Jack

    • General Information

    Name:RDL TX-TP1PW Single Output Power Inserter for Twisted Pair Units
    Category:Radio Design Labs, Pro AV, Commercial Audio, Pro Amplifiers
    UPC Code:813721016140
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
