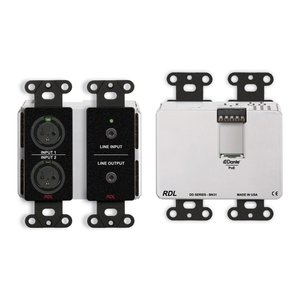

Image of RL-DDBBN31
Acheter Radio Design Labs

RDL DDB-BN31 Wall-Mounted Bi-Directional Mic / Line Dante Audio Network Interface 4 x 4

DDB-BN31|RL-DDBBN31
Acheter Radio Design Labs

RDL DDB-BN31 Wall-Mounted Bi-Directional Mic / Line Dante Audio Network Interface 4 x 4

DDB-BN31|RL-DDBBN31

Se connecter prix revendeur

Devenir client ADI
Radio Design Labs

RDL DDB-BN31 Wall-Mounted Bi-Directional Mic / Line Dante Audio Network Interface 4 x 4

DDB-BN31 | RL-DDBBN31

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

The DDB-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DDB-BN31. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom for that input the second switch selects the mic or line gain range the third switch sets the gain. The Mini-jack input provides a switch to configure the input for stereo or summed mono. The Mini-jack output provides a switch to configure the output for stereo or left-channel mono. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DDB-BN31 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DDB-BN31 is PoE powered, and is available in multiple finishes with optional customized graphics.

Principales caractéristiques

  • Dante network interface for our audio inputs and four audio outputs
  • One mini-jack and two XLR front-panel inputs
  • One mini-jack front-panel output two outputs on rear-panel terminal block
  • Converts two standard XLR mic or line audio sources to Dante network channels
  • Each XLR input is switch selectable for mic or line
  • Switch-selectable mic gain 40 dB, 48 dB or 62 dB
  • Switch-selectable 48V mic phantom (P48)
  • Switch-selectable line gain unity, 12 dB or 19 dB
  • Mini-jack -10 dBV input is switch selectable stereo or summed to mono
  • Converts four Dante network audio signals to line level

    • Renseignements généraux

    Nom:RDL DDB-BN31 Wall-Mounted Bi-Directional Mic / Line Dante Audio Network Interface 4 x 4
    Category:Radio Design Labs, Pro AV, Commercial Audio, Pro Wall Plates
    UPC Code:813721016874
    Country of Origin:United States. Country of origin is subject to change.
