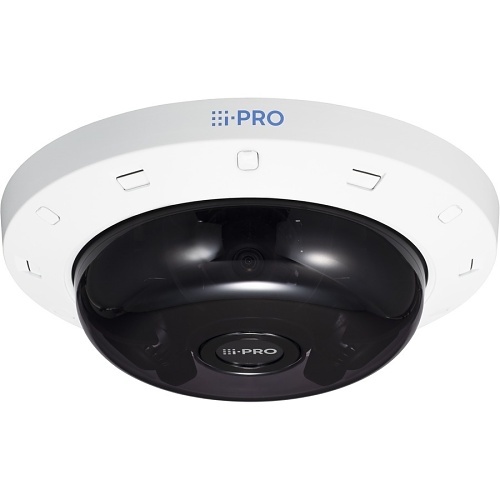

i-PRO WV-S8543G 3-4MP Outdoor Multi-Directional IP Camera with AI Engine, Smoke Dome Type
WV-S8543G
|PA-WVS8543G
i-PRO WV-S8543G 3-4MP Outdoor Multi-Directional IP Camera with AI Engine, Smoke Dome Type
WV-S8543G | PA-WVS8543G
Please sign in to view pricing, availability, and to add to cart.
Product Overview
- The thinnest multi-sensor camera (3.5 inches/90 mm)
It can be fitted in not only outside, but it also is fitted in inside the facility.
(Low profile/Blends in seamlessly with environment)
Even though it is rated IK10, it achieves the light weight body.
- A variety kinds of AI Apps selection
It can install and use up to 4 different types of AI Apps all together. Using AI processor which identifies object as people or vehicle,
it will reduce false alarm compared to conventional model. As result, it can be used many industries.
Also, new multi-sensor has IR-LED function which will increase AI intruder detection accuracy in the low light environment.
- Easy installation

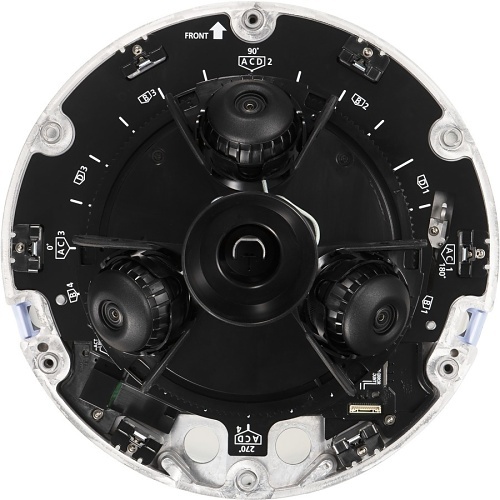

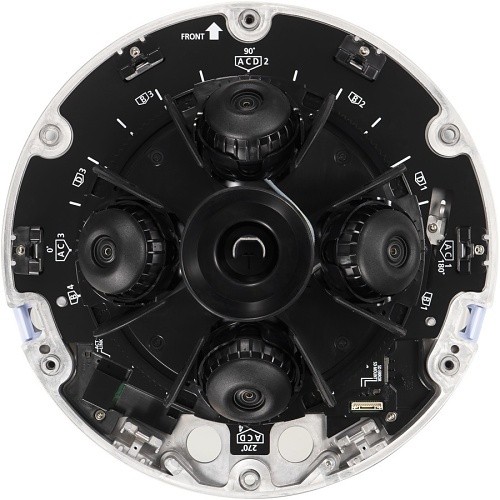

- Just 1 LAN cable covers 3 directions.
- Thin and hook architecture make easy installation
- Continuous view assistance by using smartphone navigates you the best angle position.
- You can change angle by using motorized zoom after installation.*4MP model only
- High security standard
- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®),
FIPS 140-2 Level 3 certified EdgeLock® SE050F secure element (NXP® Semiconductors) is embeded.
Main Features
- Network camera - Helps achieve high-quality video results
- Up to 2688 x 1520 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 7.30 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- 2.5x optical zoom for desired image clarity and maximum capturing convenience
- Varifocal lens type to ensure maximum surveillance productivity with added feasibility
- DC power source type for your network camera better reliance and maximum energy dependability
- SD Card Local Storage feature for maximum efficiency and convenience
- Wired connectivity technology offers maximum visual convenience
General Information
Specifications
ADI Part Number PA-WVS8543G Brand Name i-PRO Country of Origin CN Manufacturer i-PRO Manufacturer Part Number WV-S8543G Product Model WV-S8543G Product Name 3x4MP(12MP) Outdoor Multi-Sensor Network Camera with AI Engine (Smoke Dome type) Product Type Network Camera
Aspect Ratio 16:9 Connectivity Technology Wired Effective Camera Resolution 12MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Frame Rate 30.0fps Minimum Focal Length 2.90mm Optical Zoom 2.5x Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS
Ingress Protection Rating IP66, IP67
Maximum Video Resolution 2688 x 1520 Number of Sensors 3
Maximum Operating Temperature 140.00°F Minimum Operating Temperature -40.0°F Operating Humidity 1
Longest Shutter Speed 16/25 Second Shortest Shutter Speed 1/10000 Second
Network (RJ-45) Yes
Focal Length 2.9-7.3mm Lens Included Yes Maximum Focal Length 7.30mm
Remote Management Yes
Color White Durability Corrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Waterproof Form Factor Dome Height 3.50" Weight 6.83lb
Input Voltage 54V DC
Diameter 11.80"
Storage Type Memory Card
Maximum Resolution 1280 x 720
Features Audio Compression, Audio Detection, Back Light Compensation (BLC), Digital Noise Reduction, Face Detection, Highlight Compensation (HLC), Human Detection, Motion Detection, SD Card Local Storage, Vehicle Detection Impact Protection Rating IK10 Indoor/Outdoor Outdoor
