Product Overview

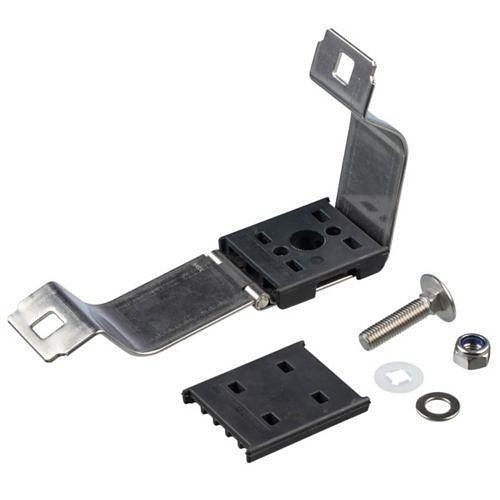

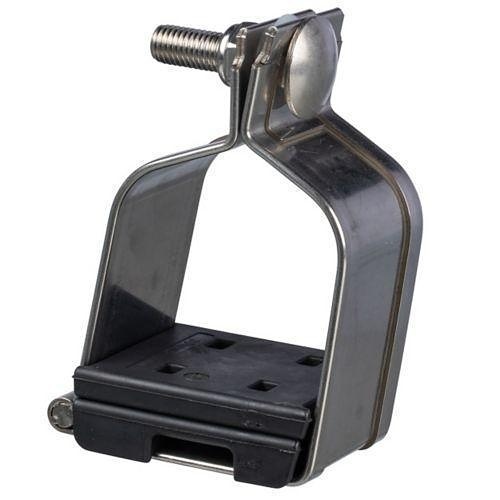

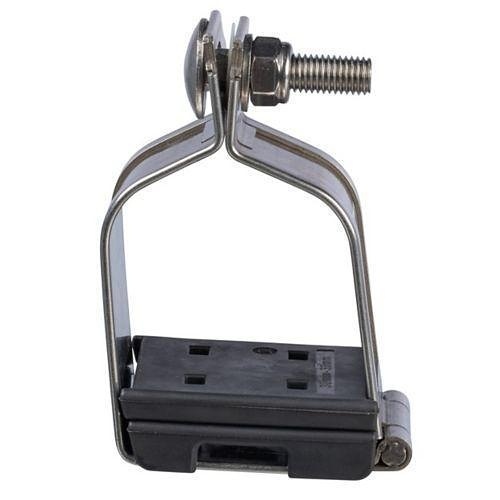

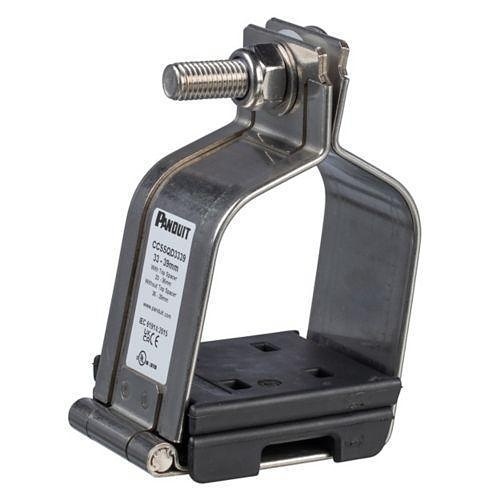

The CCSSQD3844-X Stainless Steel Quadrafoil Cable Cleat offers protection against extreme environments and high short circuit current faults. The cable cleat is certified to IEC 61914, tested up to 169kA peak fault current, and retains cables in the event of a short circuit fault. Compatible with cable diameter of 38-44mm and installs using a separately sold mounting bracket or direct to the cable tray rung via fixing hole and user-supplied M8 bolt. Features 316L SS and removable spacer.
Main Features
- Stainless steel construction with 316L SS for durability
- Tested up to 169kA peak fault current for high short circuit protection
- Certified to IEC 61914 standard
- Compatible with cable diameters of 38-44mm
- Quadrafoil cable cleat design
- Installs with separately sold mounting bracket or direct cable tray rung fixing
- Includes removable spacer
- Uses user-supplied M8 bolt for installation
General Information
Name: Panduit CCSSQD3844-X Cable Cleat, Quad Configuration
Category: Panduit, Data Comm & Networking, Cable Management, Cable Clamps
UPC Code: 613056826878
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-SSQD3844X Brand Name Panduit Manufacturer Part Number CCSSQD3844-X
Material Stainless Steel
Indoor/Outdoor Indoor, Outdoor
