Product Overview

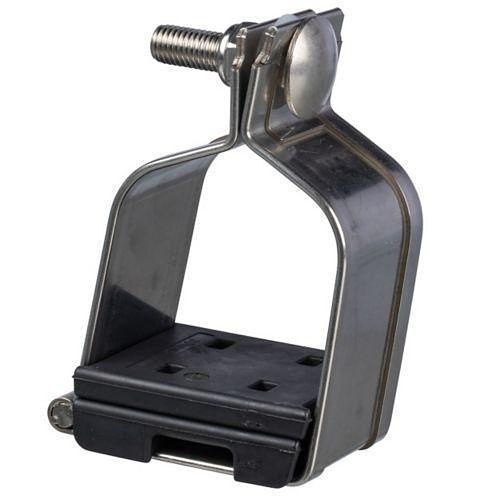

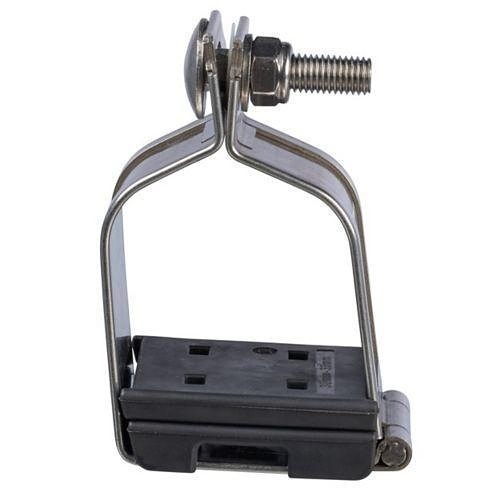

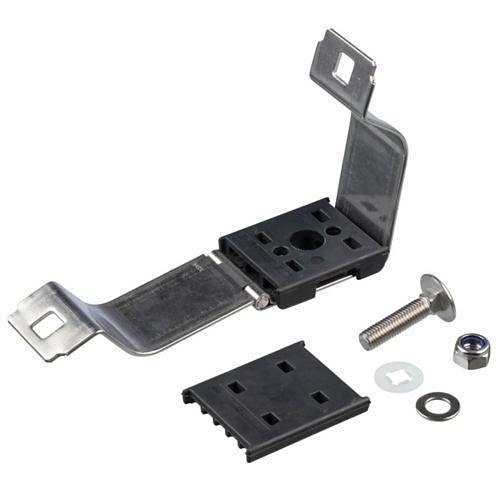

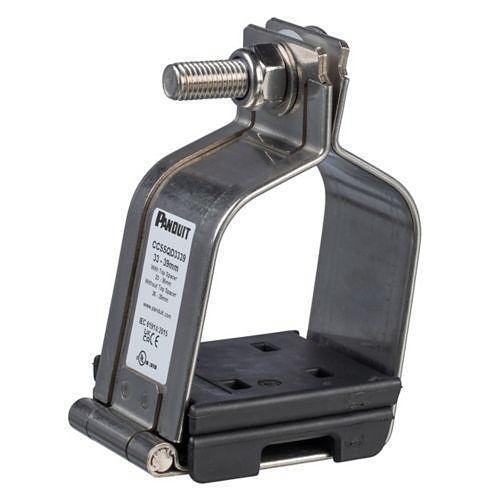

The CCSSQD3339-X Stainless Steel Quadrafoil Cable Cleat offers protection against extreme environments and high short circuit current faults. The cable cleat is certified to IEC 61914, tested up to 169 kA peak fault current, and retains cables in the event of a short circuit fault. Compatible with cable diameter of 33-39mm and installs using a separately sold mounting bracket or direct to the cable tray rung via fixing hole and user-supplied M8 bolt. Features 316L stainless steel and removable spacer.
Main Features
- Certified to IEC 61914 standard
- Tested up to 169 kA peak fault current
- Compatible with cable diameter of 33-39mm
- Constructed from 316L stainless steel
- Removable spacer included
- Installs with separately sold mounting bracket or direct to cable tray rung
- Fixing hole for user-supplied M8 bolt
- Suitable for protection against extreme environments and high short circuit current faults
General Information
Name: Panduit CCSSQD3339-X Cable Cleat, Quad Configuration
Category: Panduit, Data Comm & Networking, Cable Management, Cable Clamps
UPC Code: 613056826861
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-SSQD3339X Brand Name Panduit Manufacturer Part Number CCSSQD3339-X
Material Stainless Steel
Indoor/Outdoor Indoor, Outdoor
