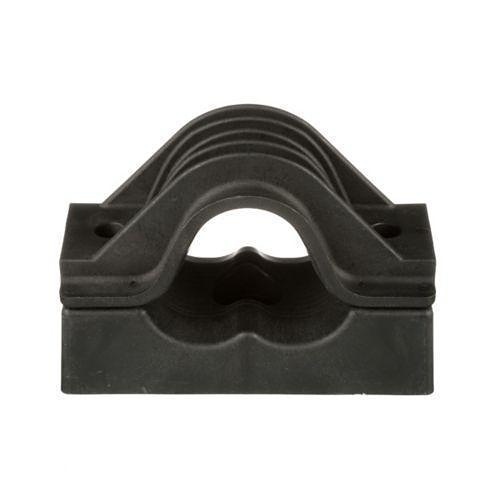

Panduit CCPLTR5060-X Cable Cleat, Polymer, Trefoil Configuration

CCPLTR5060-X | P9-PLTR5060X

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The CCPLTR5060-X Polymer Trefoil Cable Cleat is ideal for medium to high short circuit faults in less harsh environments. The cable cleat is certified to IEC 61914;2015, tested up to 136 kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 50-60mm and installs direct to the cable tray rung via fixing holes and user-supplied M10 bolt. Features glass filled nylon material and rounded edges for cable insulation protection.

Main Features

  • Certified to IEC 61914;2015 for safety and performance
  • Tested up to 136 kA peak fault current for short circuit protection
  • Compatible with cable diameters of 50-60mm
  • Installs directly to cable tray rung with fixing holes and M10 bolt
  • Constructed from glass filled nylon material
  • Rounded edges to protect cable insulation
  • Suitable for medium to high short circuit faults
  • Designed for less harsh environments

    • General Information

    Name:Panduit CCPLTR5060-X Cable Cleat, Polymer, Trefoil Configuration
    Category:Panduit, Data Comm & Networking, Cable Management, Cable Clamps
    UPC Code:613056690851
    Country of Origin:. Country of origin is subject to change.
