Product Overview
Fork Terminal, non-insulated, 22- 16 AWG, #10 stud size, standard package.
Main Features
- Non-insulated fork terminal
- Supports 22 - 16 AWG wire gauge
- Compatible with #10 stud size
- Standard package included
General Information

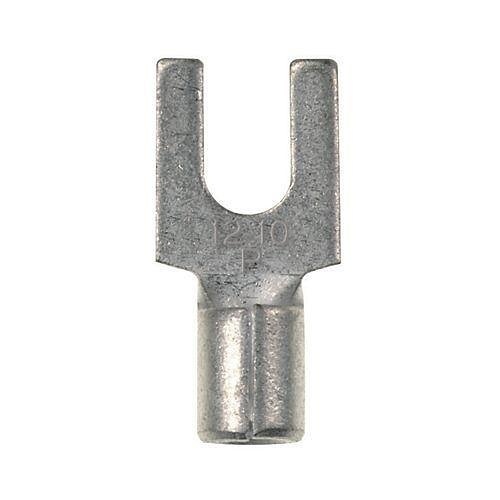

Name: Panduit P18-10F-C Fork Terminal Non-Insulated 22 - 16 AWG
Category: Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code: 74983805044
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-P1810FC Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number P18-10F-C Packaged Quantity 100 Product Name Terminal Connector Product Type Terminal Connector
American Wire Gauge 16AWG Connector Plating Tin
Connector Type Fork Terminal
Material Copper Width 0.40"
Diameter 0.14" Length 0.70"
Limited Warranty 1-Year
Environmentally Friendly Yes Features Brazed Seam
