Panduit LAM2A1/0-14-6Y Cover Black 500 AWG HTAP Fire Rated
LAM2A1/0-14-6Y
|P9-M2A10146Y
Shop All Panduit
Panduit LAM2A1/0-14-6Y Cover Black 500 AWG HTAP Fire Rated
LAM2A1/0-14-6Y | P9-M2A10146Y
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

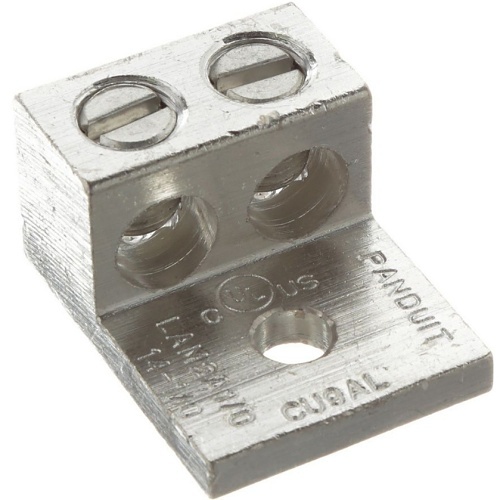

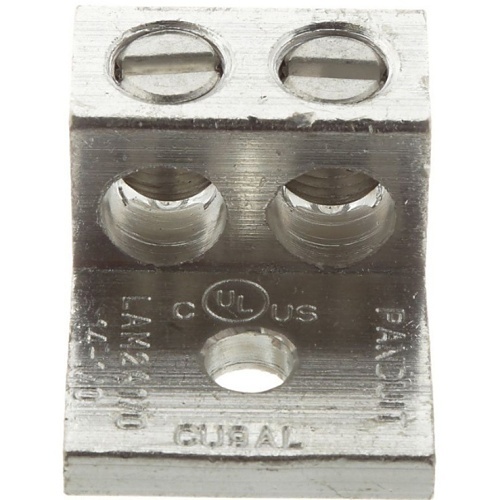

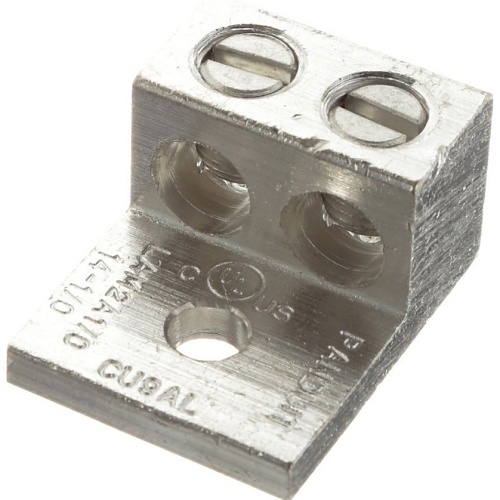

The LAM2A1/0-14-6Y Tin-Plated Aluminum Mechanical Lug, one-hole, two barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
Main Features
- Tin-Plated Aluminum Mechanical Lug
- One-hole, two-barrel design
- Extruded aluminum alloy for premium performance
- Wide wire range-taking capability
- Minimizes inventory requirements
- Durable electrical contact with plated set screw
- UL Listed and CSA Certified
- Suitable for use up to 600 V
- UL temperature rated 90°C
General Information
Name: Panduit LAM2A1/0-14-6Y Cover Black 500 AWG HTAP Fire Rated
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 74983592180
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-M2A10146Y Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LAM2A1/0-14-6Y Packaged Quantity 6 Product Name Terminal Connector Product Type Terminal Connector
Connector Plating Tin
Connector Type Barrel Plug
Height 0.77" Width 1.13"
Length 1.48"
Limited Warranty 1-Year
Environmentally Friendly Yes Features Halogen Free
