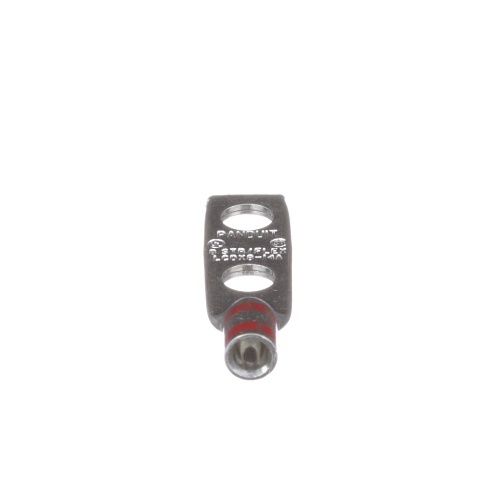

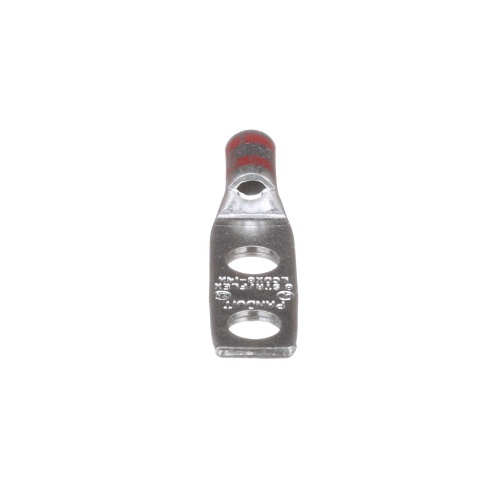

Panduit LCDX8-14A-L Compression Connector Lug, 2-Hole, Flex, #8AWG, Copper

LCDX8-14A-L | P9-LCDX814AL

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The LCDX8-14A-L Tin-Plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Main Features

  • Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin-plated to inhibit corrosion
  • UL Listed and CSA Certified to 35 KV and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies
  • American Bureau of Shipping approved
  • Available with NEMA hole sizes and spacing

    • General Information

    Name:Panduit LCDX8-14A-L Compression Connector Lug, 2-Hole, Flex, #8AWG, Copper
    Category:Panduit, Batteries & Power Supplies, Power Accessories & Parts
    UPC Code:074983423538
    Country of Origin:. Country of origin is subject to change.
