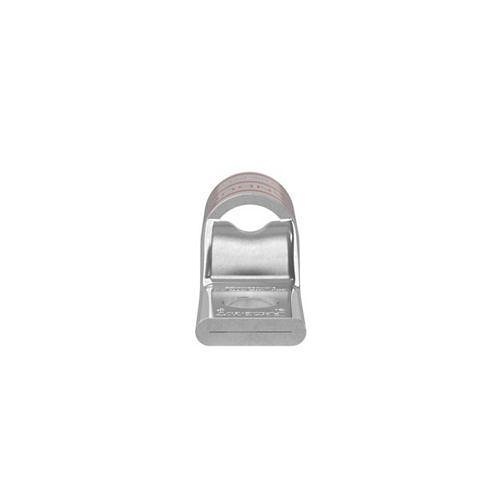

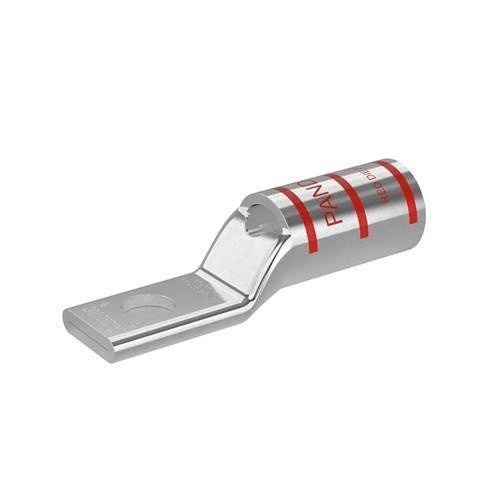

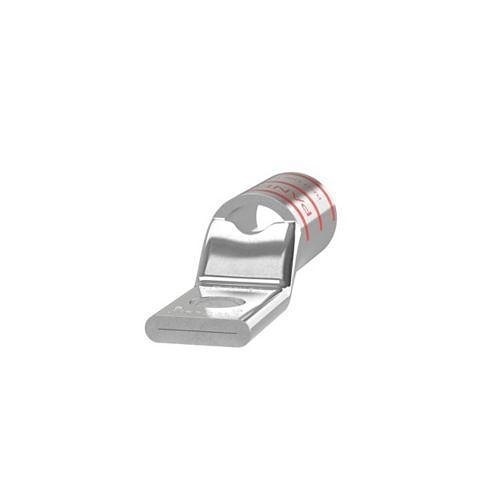

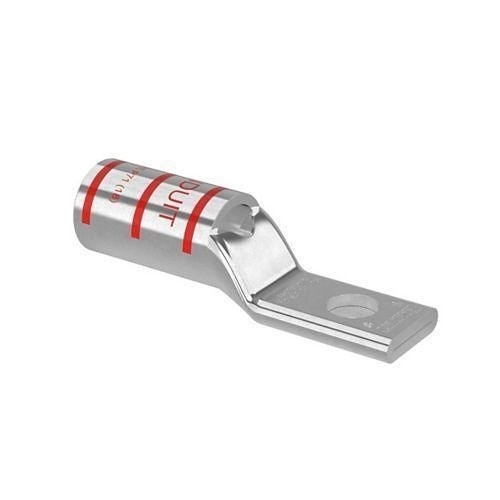

Panduit LCAN350-38-X Compression Connector Lug, 1-Hole, 350kcmil, Copper
LCAN350-38-X
|P9-CAN35038X
Shop All Panduit
Panduit LCAN350-38-X Compression Connector Lug, 1-Hole, 350kcmil, Copper
LCAN350-38-X | P9-CAN35038X
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The LCAN350-38-X Copper Compression Connector Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 kV and temperature rated to 90°C.
Main Features
- Copper compression connector lug with one-hole design
- Color-coded barrels marked with Panduit and competitor die indexes
- Standard barrel for proper crimp die selection
- Inspection window for visual conductor insertion assurance
- Tin-plate material to inhibit corrosion
- UL Listed and CSA Certified to 35 kV
- Temperature rating up to 90°C
General Information
Name: Panduit LCAN350-38-X Compression Connector Lug, 1-Hole, 350kcmil, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 74983603459
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-CAN35038X Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LCAN350-38-X Product Name Terminal Connector Product Type Terminal Connector
Material Copper
Length 2.30"
Environmentally Friendly Yes Features Angled Connector
