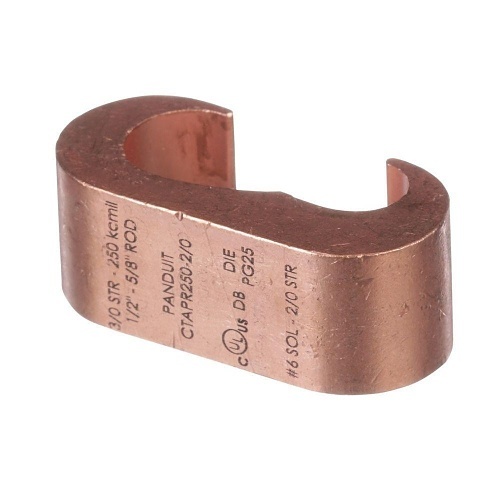

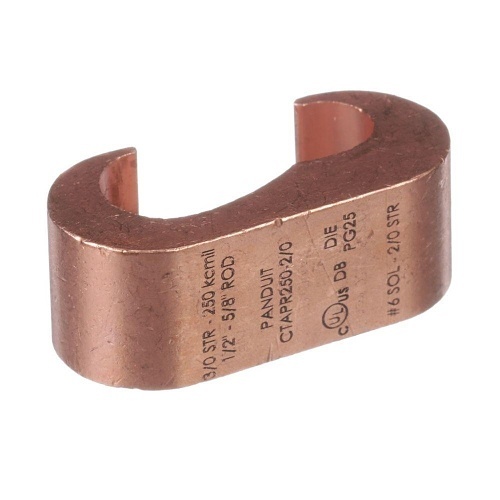

Panduit CTAPR250-2/0-6 C-Style Copper Compression Connector, 250, 3/0 AWG Stranded
CTAPR250-2/0-6|P9-APR250206
Panduit CTAPR250-2/0-6 C-Style Copper Compression Connector, 250, 3/0 AWG Stranded
CTAPR250-2/0-6|P9-APR250206
Panduit
Panduit CTAPR250-2/0-6 C-Style Copper Compression Connector, 250, 3/0 AWG Stranded
CTAPR250-2/0-6 | P9-APR250206
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The CTAPR250-2/0-6 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod applications. UL Listed per UL486 for use suitable for direct burial in earth and concrete. UL 486A-486B Listed for wire-to-wire power applications up to 36kV and temperature-rated 90°C with select Panduit or industry-standard crimp tools and crimp dies.
Main Features
General Information
Name:Panduit CTAPR250-2/0-6 C-Style Copper Compression Connector, 250, 3/0 AWG Stranded
Category:Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code:613056142923
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number P9-APR250206 Brand Name Panduit Manufacturer Part Number CTAPR250-2/0-6 Packaged Quantity 1 Product Name StructuredGround Compression Tap Product Type Compression Tap
Material Copper
Height 1.98" Width 0.93"
Length 0.75"
