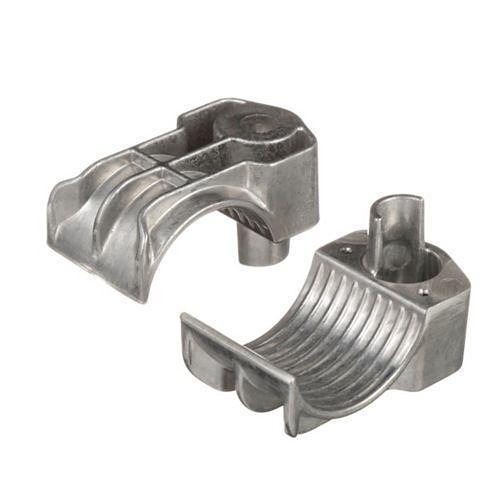

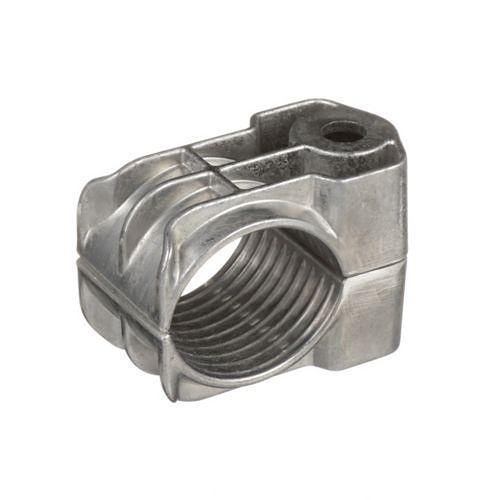

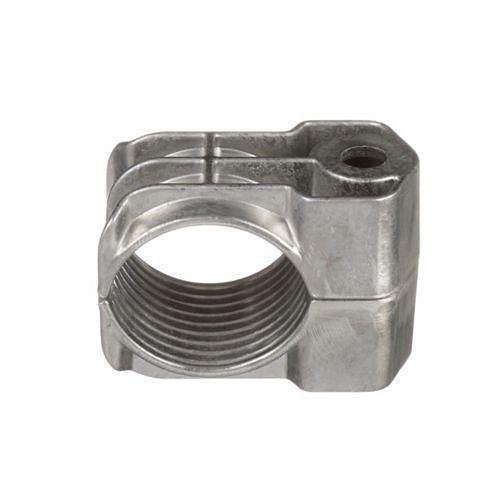

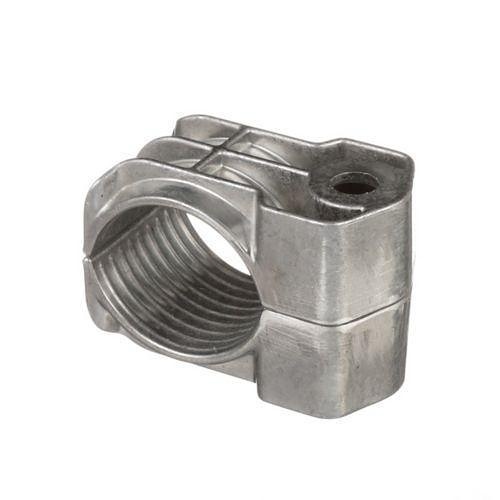

Panduit CCAL1H3846-X Cable Cleat, Aluminum, 1-Hole Clamp Type
CCAL1H3846-X
|P9-AL1H3846X
Shop All Panduit
Panduit CCAL1H3846-X Cable Cleat, Aluminum, 1-Hole Clamp Type
CCAL1H3846-X | P9-AL1H3846X
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The CCAL1H3846-X One-Hole Aluminum Cable Cleat is ideal for lower to medium short circuit faults in less corrosive environments. The cable cleat is certified to IEC 61914;2015, tested up to 93.4kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 38–46mm and installs direct to the cable tray rung via fixing hole and user-supplied M10 bolt. Insulating spacers and washers sold separately for protection against galvanic corrosion.
Main Features
- Certified to IEC 61914:2015 for short circuit performance
- Tested up to 93.4kA peak fault current
- Designed for 38–46mm cable diameter compatibility
- Aluminum construction for corrosive environment resistance
- One-hole clamp type design
- Installs directly to cable tray rung with M10 bolt
- Supports lower to medium short circuit faults
- Insulating spacers and washers sold separately for galvanic corrosion protection
General Information
Name: Panduit CCAL1H3846-X Cable Cleat, Aluminum, 1-Hole Clamp Type
Category: Panduit, Tools & Hardware, Tools, Clips & Clamps
UPC Code: 613056737495
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-AL1H3846X Brand Name Panduit Manufacturer Part Number CCAL1H3846-X
Material Aluminum
Indoor/Outdoor Indoor, Outdoor
