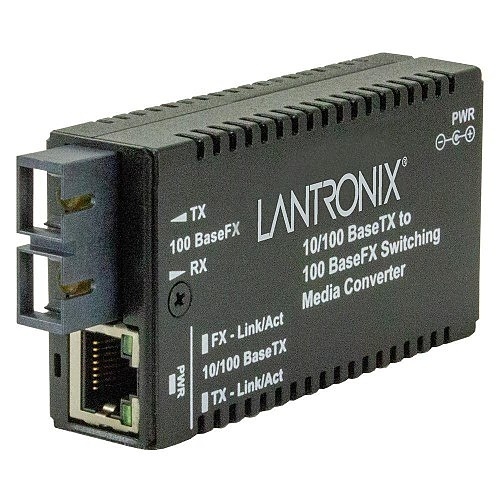

Lantronix M/E-PSW-FX-02(SC)-EU M/E-PSW Series Mini Fast Ethernet Media Converter, 10/100BASETX to 100BASEFX SWITCH, SC Multimode, 2km European Power Cord
M/E-PSW-FX-02(SC)-EU
|P6-MPWFX2CU
Shop All Lantronix
Lantronix M/E-PSW-FX-02(SC)-EU M/E-PSW Series Mini Fast Ethernet Media Converter, 10/100BASETX to 100BASEFX SWITCH, SC Multimode, 2km European Power Cord
M/E-PSW-FX-02(SC)-EU | P6-MPWFX2CU
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The M/E-PSW Series is a Fast Ethernet stand-alone Mini media converter that provides cost-effective media conversion between 10/100Base-TX ports and 100Base-FX ports. with its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
Main Features
- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Auto-MDI/MDIX
- Automatic Link Restoration
- Far-End-Fault (FEF)
- Connect to legacy network equipment
- Eliminate Collision Domains
General Information
Name: Lantronix M/E-PSW-FX-02(SC)-EU M/E-PSW Series Mini Fast Ethernet Media Converter, 10/100BASETX to 100BASEFX SWITCH, SC Multimode, 2km European Power Cord
Category: Lantronix, Data Comm & Networking, Network Adapters, Media Converters
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-MPWFX2CU Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number M/E-PSW-FX-02(SC)-EU Packaged Quantity 3 Product Model M/E-PSW-FX-02(SC)-EU Product Name Mini Fast Ethernet Media Converter Product Series M/E-PSW Product Type Media Converter
Fiber Optic Mode Multimode Maximum Distance 1.24mi Power Consumption 2.6000W
Number of Speakers 2
Number of Ports 2
Fiber Optic Wavelength 1300.00nm Network Technology 10/100Base-TX, 100Base-FX, 100Base-T, 10Base-T
Depth 3.30" Height 0.85" Weight 2.00lb Width 1.80"
Power Source AC Power, DC Power
Limited Warranty Lifetime
Environmental Certification cUL, UL Environmentally Friendly Yes Package Contents DIN Rail Clip and Velcro, M/E-PSW-FX-02(SC) Transceiver/Media Converter, Power Supply - Europe
