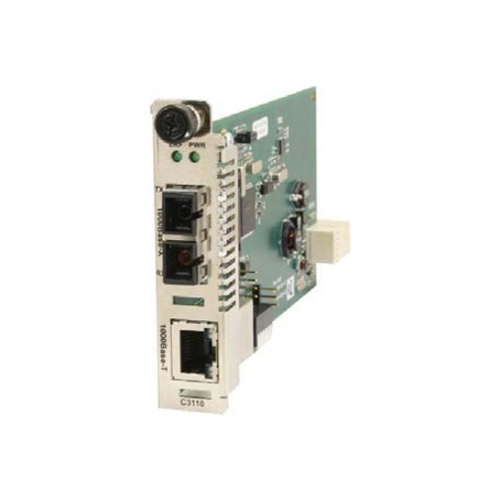

Lantronix C3110-1013 Media Converters,ION C3110 2 1000Base-SX|1000Base-T 62.5/125 µm|50/125 µm
C3110-1013
|P6-C31101013
Shop All Lantronix
Lantronix C3110-1013 Media Converters,ION C3110 2 1000Base-SX|1000Base-T 62.5/125 µm|50/125 µm
C3110-1013 | P6-C31101013
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The ION C3110 is a media converter module that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments.
Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential. The ION C3110 is a manageable device when installed in a managed ION chassis.
Main Features
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- with 1000Base-T technology get up to 1000 Mbps data transfer rate over twisted pair cable
- The Internal provides convenient installation
- Remote Fault Detect
- Loopback
- Pause
- Automatic Link Restoration
- Field Upgradeable Firmware
- Can be used in any ION Platform Chassis
- Cost effective fiber deployment by pairing C3110 with lower cost 1000Base-T switches, offering the benefits of fiber without the high costs
General Information
Name: Lantronix C3110-1013 Media Converters,ION C3110 2 1000Base-SX|1000Base-T 62.5/125 µm|50/125 µm
Category: Lantronix, Data Comm & Networking, Network Adapters, Media Converters
UPC Code: 648177029334
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number P6-C31101013 Brand Name Lantronix Country of Origin TW Manufacturer Lantronix, Inc Manufacturer Part Number C31101013 Product Line ION Product Model C3110-1013 Product Name ION C3110-1013 Transceiver/Media Converter Product Series C3110 Product Type Transceiver/Media Converter
Fiber Optic Cable Standard 50/125 µm, 62.5/125 µm Fiber Optic Mode Multimode Maximum Distance 1804.46' Media Type Supported Optical Fiber, Twisted Pair Power Consumption 3.6000W
TAA Compliant Yes
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Network Technology 1000Base-SX, 1000Base-T
Ethernet Technology 10 Gbps
Depth 6.50" Height 3.40" Weight 1.00lb Width 0.90"
Power Source DC Power
ADI Part Number Replaces P6-CGETF1013 Model Number Replaces CGETF1013-110
Limited Warranty Lifetime
